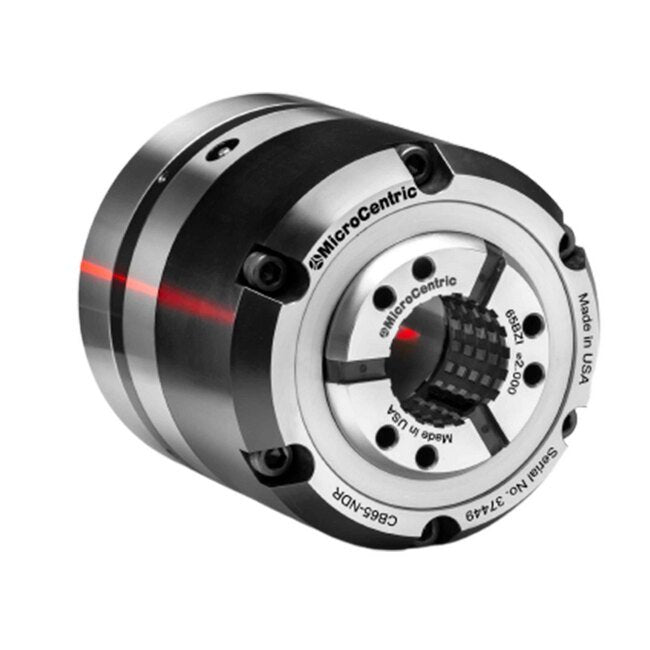

CB-NDR Pull-to-Close Collet Chuck for Servo Stop Bar Loaders
CB-NDR Pull-to-Close Collet Chuck for Servo Stop Bar Loaders
SKU:QUI-943d70
Patented CB-NDR Collet Chuck ensures precise bar loading with no pull back effect. Radial adjusting screws for superior alignment.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-NDR Pull-to-Close Collet Chuck for Servo Stop Bar Loaders
$899.99
Quantity: 1
Claim Your Seller Account
CB-NDR Pull-to-Close Collet Chuck for Servo Stop Bar Loaders
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NDR Pull-to-Close Collet Chuck is a patented Dead Length design specifically engineered for servo stop bar loaders. Unlike traditional dead length collet chucks, the CB-NDR utilizes a pull-to-close mechanism, ensuring the bar remains secured on the servo stop without any pull back effect. Featuring radial adjusting screws for precise chuck assembly alignment within .0002 inches, this lubricated-for-life design minimizes maintenance requirements. With all components hardened and precision ground, this collet chuck guarantees superior accuracy and durability for prolonged operational use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

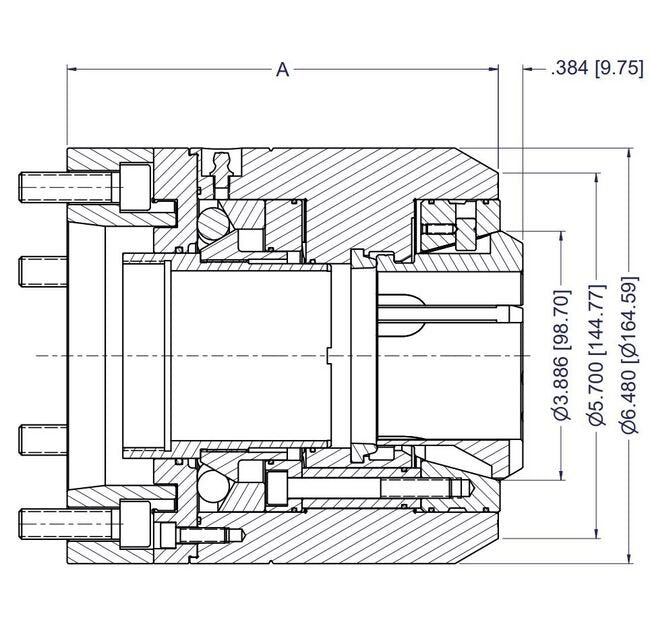

Specifications A Dimension
5.985 in | 152.02 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 258
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M75x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Weight
37.9 lb | 17.2 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
