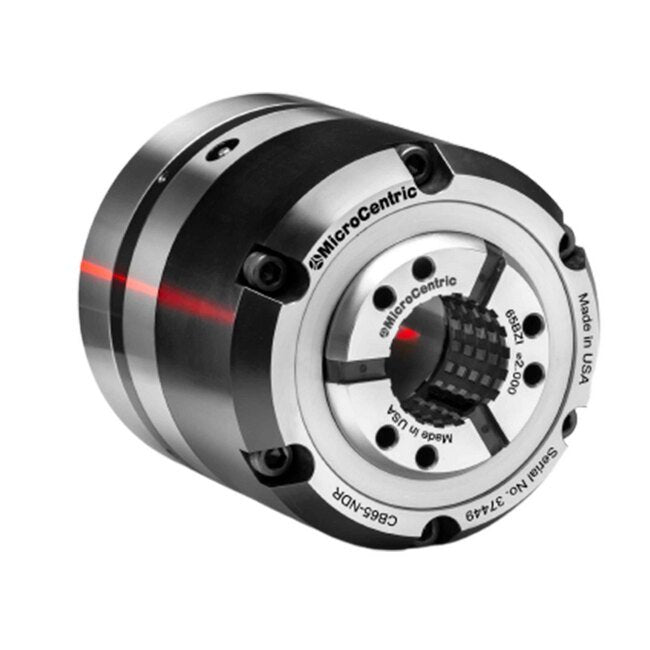

The CB-NDR Pull to Close Dead Length Collet Chuck is a patented design specifically tailored for servo stop bar loaders. This innovative design prevents the bar from being pushed off the servo stop by actuating as the draw tube is pulled towards the machine spindle. Featuring radial adjusting screws for precise chuck assembly alignment within .0002 inches, this chuck offers exceptional accuracy. The lubricated-for-life design minimizes maintenance needs, while all components are hardened and precision ground for longevity. With a Max. Clamp Force of 23,605 lbs and a Max. Speed of 6,000 rpm, the CB-NDR ensures high performance and durability, making it an ideal choice for machining applications requiring superior precision and reliability.
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

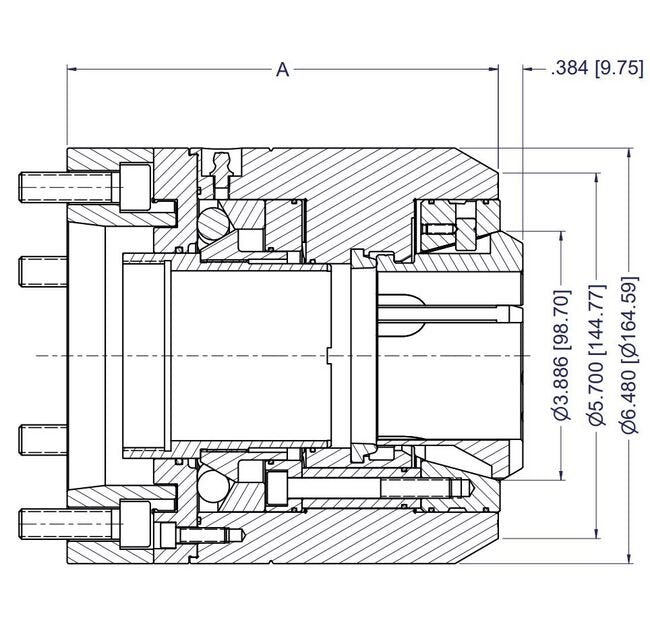

Specifications A Dimension
6.175 in | 156.85 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 255
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Weight
37.9 lb | 17.2 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
