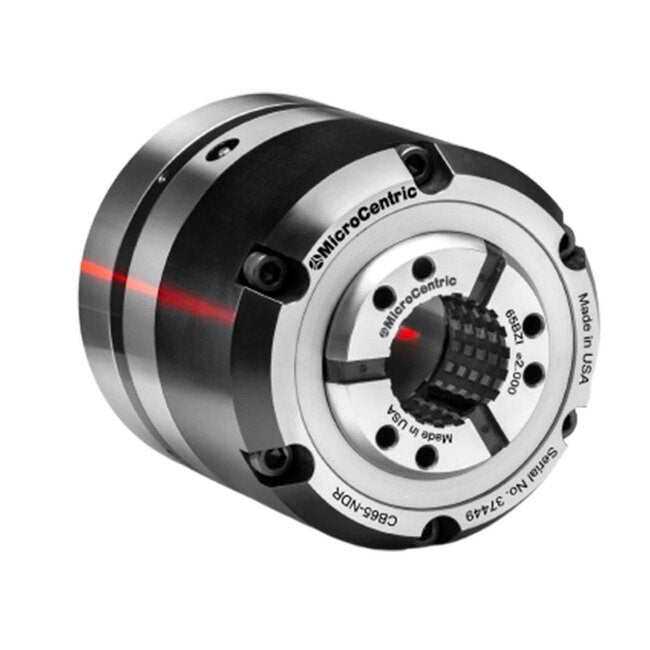

The CB-NDR Servo Stop Bar Dead Length Collet Chucks offer a patented design ideal for servo stop bar loaders. Actuated by pulling the draw tube towards the machine spindle, this design prevents bar displacement. With a Pull to Close Dead Length feature, these chucks eliminate pull back and maintain precision with radial adjusting screws. Built for durability, the chucks are lubricated-for-life, require minimal maintenance, and boast components hardened and precision ground for superior accuracy and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

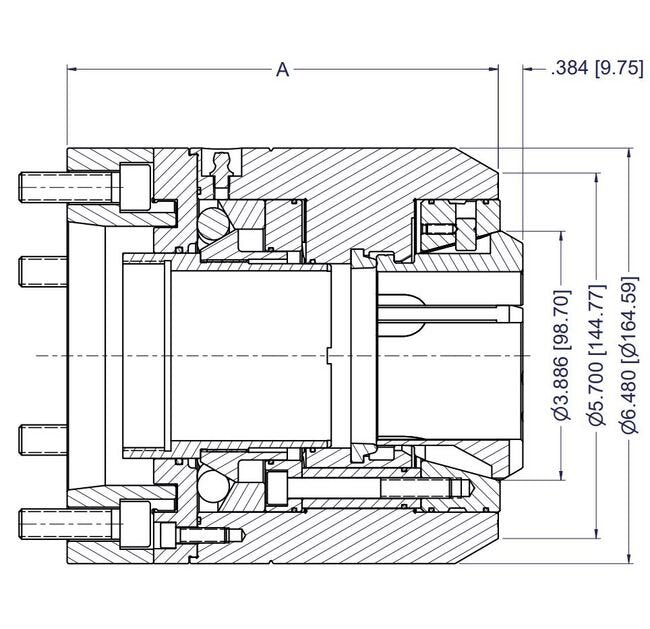

Specifications A Dimension
6.725 in | 170.82 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 256
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M75x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
37.9 lb | 17.2 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
