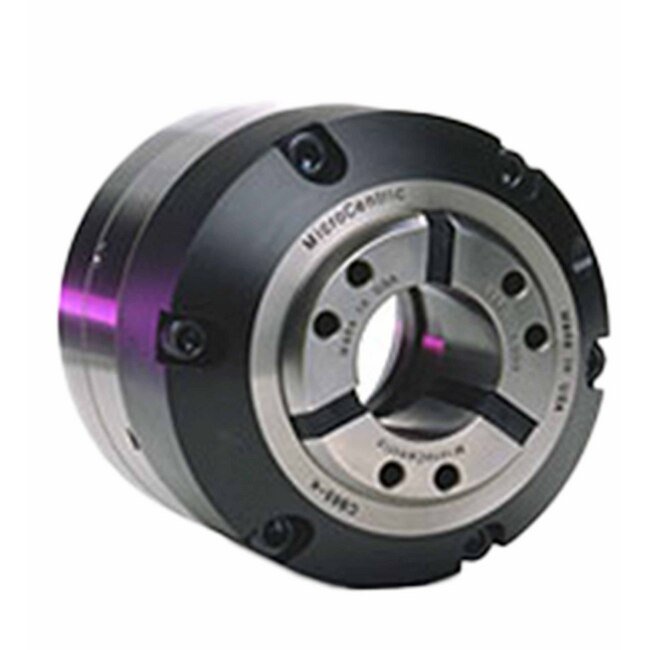

CB-NK Combination Collet Chuck
CB-NK Combination Collet Chuck
SKU:QUI-9449f3
Experience precision and efficiency with the CB-NK Combination Collet Chuck - perfect for high-accuracy machining applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
CB-NK Combination Collet Chuck
$1,299.99
Quantity: 1
Claim Your Seller Account
CB-NK Combination Collet Chuck
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NK Combination Collet Chuck offers unparalleled precision and efficiency in clamping systems, featuring a Pull Back design for concentrated forces towards the spindle, ensuring top-notch accuracy and rigidity. With radial adjusting screws for precise alignment, lubricated-for-life design for minimal maintenance, and hardened components for enhanced durability, this chuck excels in tool clearance and Z-axis utilization. It includes removable stop plates for chucking applications, making it versatile and reliable for various machining needs.
Product Specifications
Specifications Accuracy
.0006 in | 0.015 mm

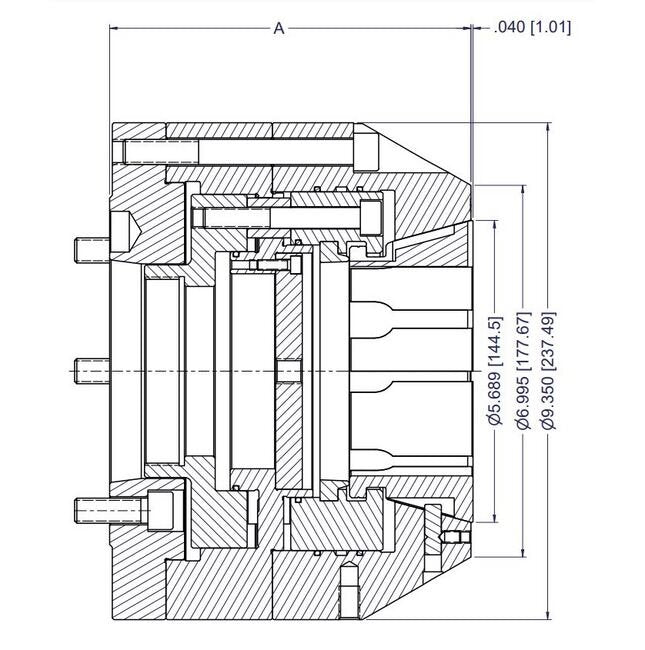

Specifications A Dimension
6.89 in | 175.01 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications Item No
15 100 161
Specifications Linear Chuck Stroke
0.275 in | 7 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
4,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Through Capacity
3.370 in | 93 mm
Specifications Weight
55.4 lb | 25.1 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
