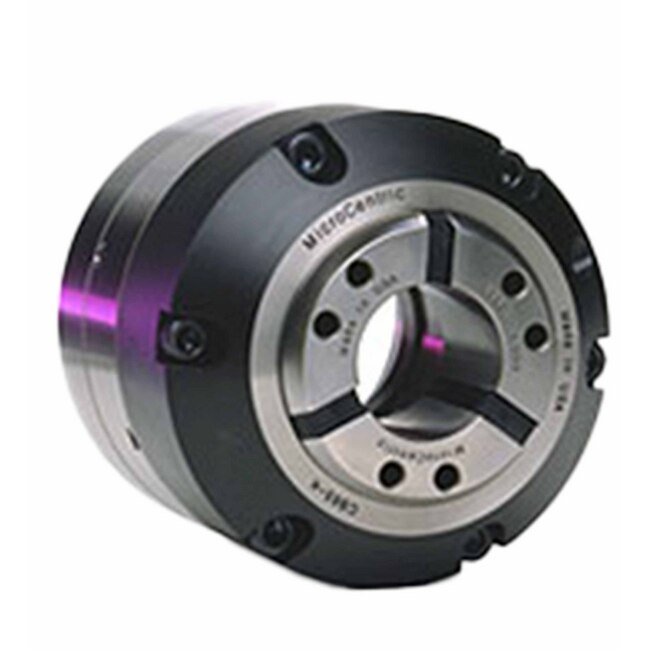

The CB-NK Combination Design Collet Chuck offers superior clamping efficiency with its pull back design, enabling seamless conversion from bar to chucking applications. Featuring a low profile OD and radial adjusting screws for precision alignment, this collet chuck ensures maximum tool clearance and accuracy within .0002 inches. With a maximum clamping diameter of 1.625 inches and a maximum clamp force of 17,985 lbs, this chuck is designed for high-performance machining operations. The lubricated-for-life design and hardened, precision-ground components guarantee long-term durability and low maintenance requirements.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

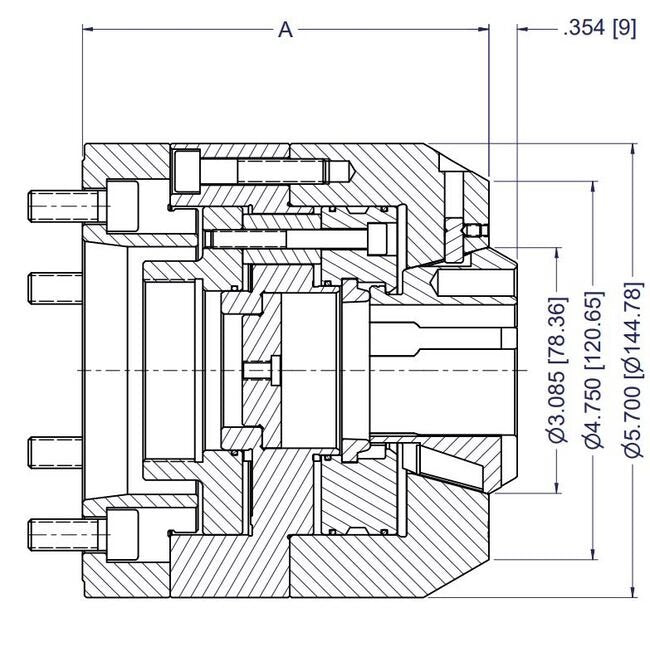

Specifications A Dimension
5.1 in | 129.54 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications Item No
15 042 161
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
1.420 in | 36 mm
Specifications Weight
16.7 lb | 7.6 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
