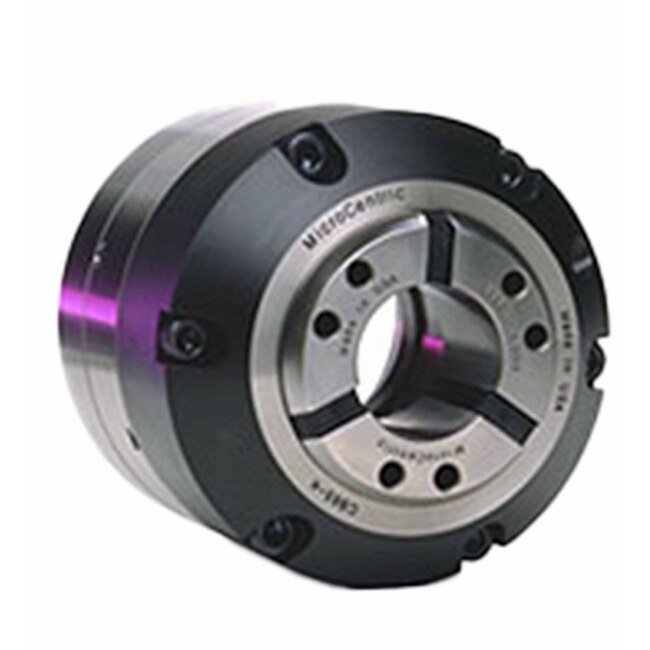

The CB-NK Combination Design Collet Chucks offer unparalleled efficiency and accuracy with a Pull Back design that concentrates forces for maximum rigidity. Featuring a low profile, radial adjusting screws for precision alignment, and components hardened for durability. With a lubricated-for-life design, these chucks require minimal maintenance while delivering exceptional clamping force and tool clearance. Perfect for transitioning between bar and chucking applications with ease.
Product Specifications
Specifications Accuracy
.0006 in | 0.015 mm

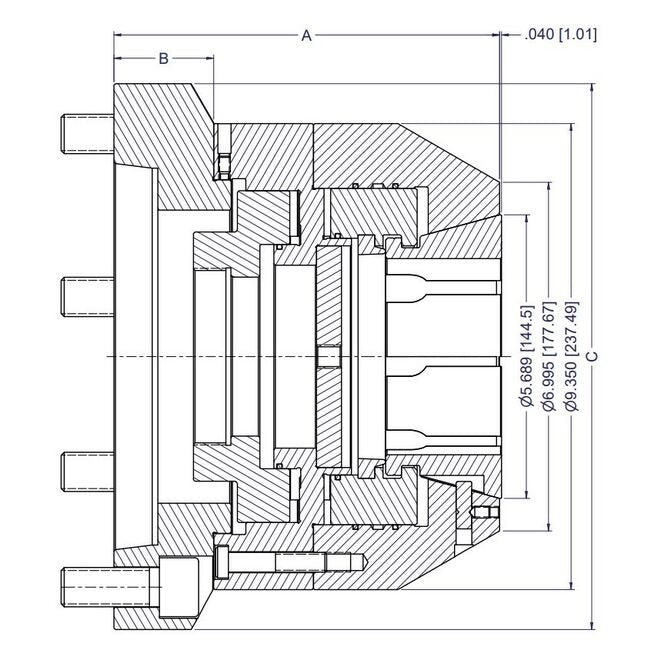

Specifications A Dimension
7.73 in | 196.34 mm
Specifications B Dimension
2 in | 50.8 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications C Dimension
10.95 in | 278.13 mm
Specifications Item No
15 100 162
Specifications Linear Chuck Stroke
0.275 in | 7 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M130x2
Specifications Max Speed
4,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Through Capacity
3.370 in | 93.2 mm
Specifications Weight
47.9 lb | 21.8 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
