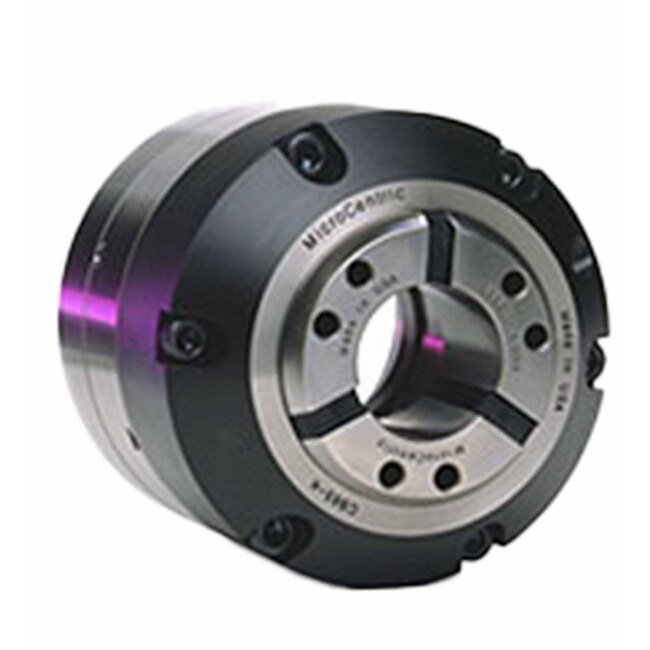

CB-NK Pull Back Collet Chucks
CB-NK Pull Back Collet Chucks
SKU:QUI-7879e2
Maximize machining precision with CB-NK Pull Back Collet Chucks, featuring a unique pull back design for maximum clamping force.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
CB-NK Pull Back Collet Chucks
$549.99
Quantity: 1
Claim Your Seller Account
CB-NK Pull Back Collet Chucks
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining precision with CB-NK Pull Back Collet Chucks featuring a unique pull back design for maximum clamping force. The low profile OD and radial adjusting screws ensure utmost accuracy and rigidity. Enjoy hassle-free maintenance with the lubricated-for-life design. Mount end stops for chucking applications effortlessly within the chuck body. Experience top-tier durability and precision with all components hardened and ground. Elevate your machining efficiency with CB-NK Pull Back Collet Chucks.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

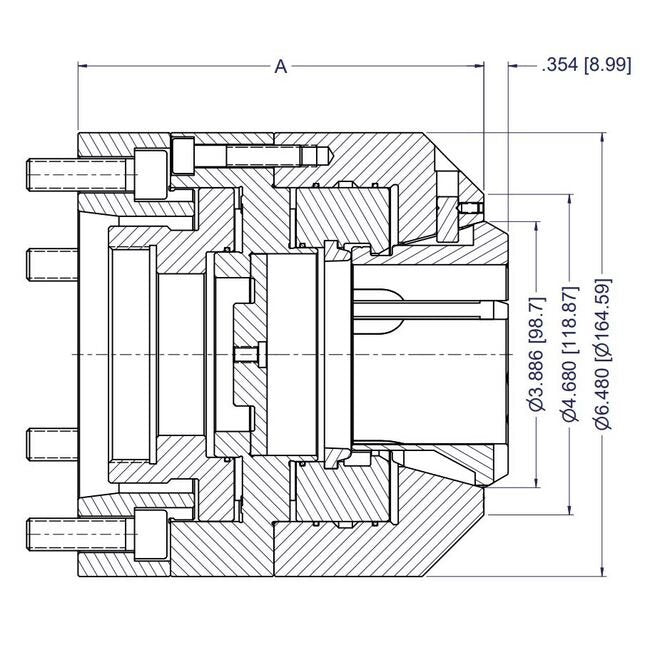

Specifications A Dimension
5.925 in | 150.5 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 161
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Through Capacity
2.245 in | 57 mm
Specifications Weight
40.0 lb | 18 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
