CB-NK Quick Change Collet Chuck
CB-NK Quick Change Collet Chuck
SKU:QUI-bc15bc
Maximize clamping efficiency with CB-NK Collet Chuck - Combination Design. Pull Back design, precision ground components, high accuracy. Ideal for industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
CB-NK Quick Change Collet Chuck
$299.99
Quantity: 1
Claim Your Seller Account
CB-NK Quick Change Collet Chuck
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

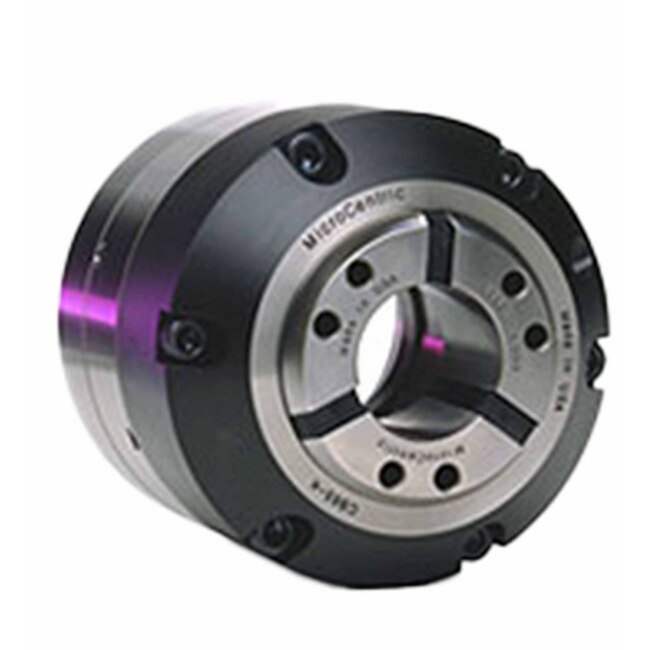

The CB-NK Quick Change Collet Chuck - Combination Design offers superior clamping efficiency and accuracy for both bar and chucking applications. Featuring a Pull Back design for maximum rigidity, radial adjusting screws for precise alignment, and a lubricated-for-life design for minimal maintenance. With hardened components and removable stop plates for added versatility, this collet chuck ensures high accuracy and durability. Compatible with a range of machine configurations, it provides a clamping force of 17,985 lbs and operates at speeds up to 6,000 rpm, meeting the demanding requirements of industrial applications.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

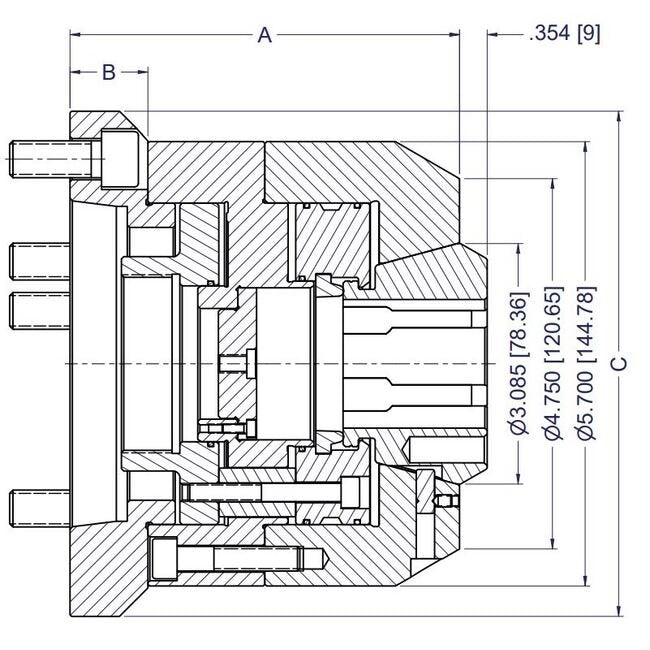

Specifications A Dimension
4.703 in | 119.46 mm
Specifications B Dimension
0.703 in | 17.86 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications C Dimension
5.95 in | 151.13 mm
Specifications Item No
15 042 163
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
140mm
Specifications Through Capacity
1.420 in | 36 mm
Specifications Weight
16.7 lb | 7.6 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
