CB-NRB Stationary Collet Chucks
CB-NRB Stationary Collet Chucks
SKU:QUI-58d768
Efficient, durable CB-NRB Stationary Collet Chucks for precise non-rotating applications. Maximize clamping force with minimal maintenance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
CB-NRB Stationary Collet Chucks
$399.99
Quantity: 1
Claim Your Seller Account
CB-NRB Stationary Collet Chucks
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

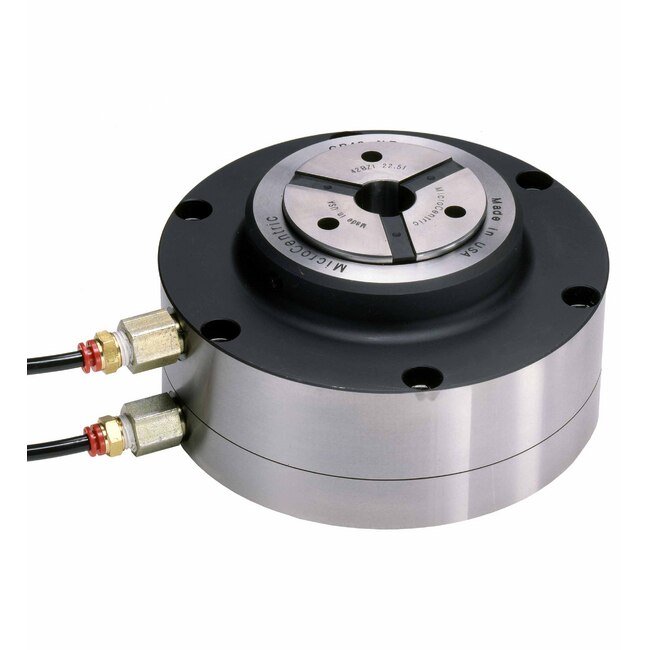

The CB-NRB Stationary Collet Chucks feature a hydraulically actuated Pull Back design for non-rotating applications, maximizing clamping efficiency by concentrating force towards the machine table. Built-in piston with self-contained design and lubricated-for-life mechanism ensures minimal maintenance. Each component is hardened and precision ground for utmost accuracy and durability. With a non-rotating dead length option available on request, these chucks offer a clamping range of +/- 0.020 inches and a max clamp force of 23,605 lbs, meeting the highest industry standards.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Hydraulic Force
580 psi | 4.0 MPa
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Piston Stroke
0.16 in | 4 mm
Specifications Weight
27.5 lb | 12.5 kg
