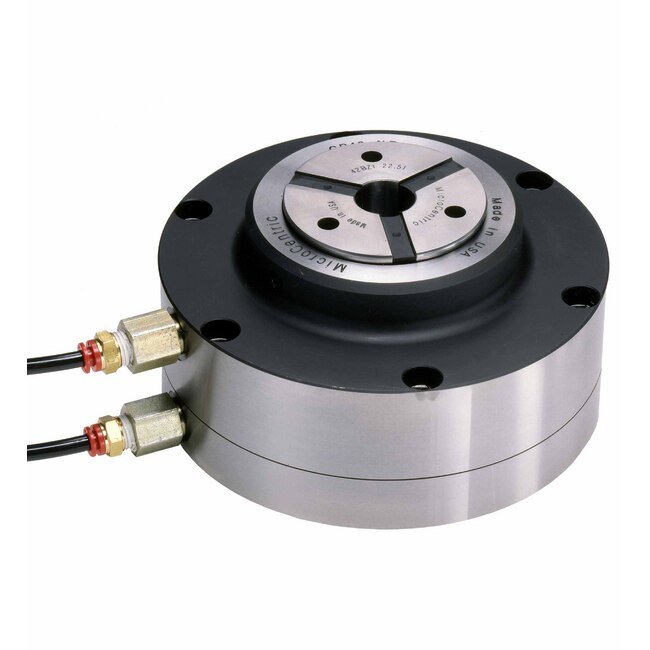

The CB-NRB Stationary Design Collet Chucks are hydraulically actuated with a self-contained Pull Back design, ideal for non-rotating applications. Featuring a built-in piston, the chuck efficiently concentrates chucking force towards the machine table, ensuring precision clamping. Maintenance is minimal thanks to the lubricated-for-life design. Hardened and ground components ensure longevity and accuracy. This product's non-rotating dead length designs can be customized, meeting the highest institutional procurement standards.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Hydraulic Force
420 psi | 2.9 MPa
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Piston Stroke
0.16 in | 4 mm
Specifications Weight
18.6 lb | 8.5 kg
