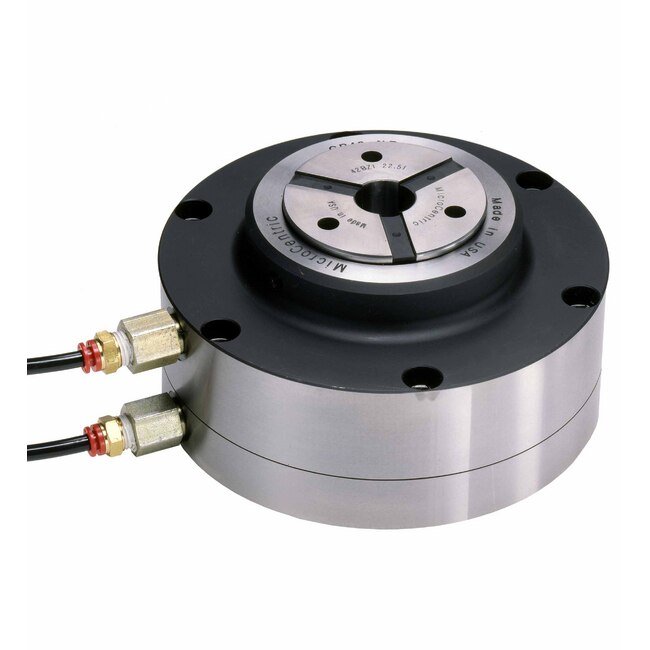

CB-NRB Stationary Design Quick Change Collet Chuck
CB-NRB Stationary Design Quick Change Collet Chuck
SKU:QUI-fb5491
Efficient, high-precision CB-NRB Stationary Collet Chuck for non-rotating applications, max clamping diameter 3.250 in, max clamp force 25,853 lbs.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
CB-NRB Stationary Design Quick Change Collet Chuck
$599.99
Quantity: 1
Claim Your Seller Account
CB-NRB Stationary Design Quick Change Collet Chuck
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NRB Stationary Design Quick Change Collet Chuck is a self-contained, hydraulically actuated pull-back chuck ideal for non-rotating applications. Its built-in cylinder allows for hydraulic or pneumatic operation, maximizing clamping efficiency. This chuck features a lubricated-for-life design, hardened and precision ground components for accuracy and durability, and a pull-back design that concentrates chucking force towards the machine table. With a maximum clamping diameter of 3.250 inches, minimum clamping diameter of 0.500 inches, and a max clamp force of 25,853 lbs, this chuck is designed for high precision and long-term reliability.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Hydraulic Force
760 psi | 5.2 MPa
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Piston Stroke
0.16 in | 4 mm
Specifications Weight
40.69 lb | 18.46 kg
