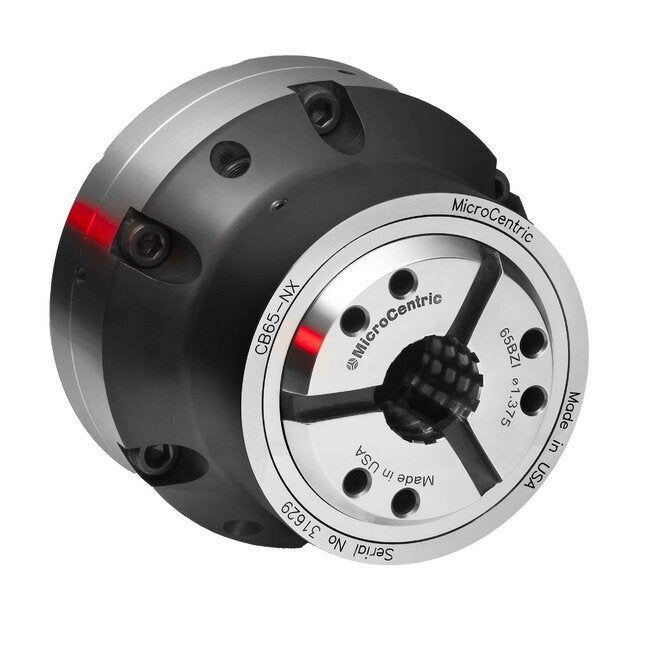

CB-NX Collet Chuck - Dead Length Design
CB-NX Collet Chuck - Dead Length Design
SKU:QUI-fa742e
Maximize tool clearance and accuracy with the CB-NX Collet Chuck's low profile dead length design and radial adjusting screws. Maintenance-free and durable construction for long-term precision machining.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-NX Collet Chuck - Dead Length Design
$899.99
Quantity: 1
Claim Your Seller Account
CB-NX Collet Chuck - Dead Length Design
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NX Collet Chuck features a low profile dead length design with a reduced diameter nose, offering exceptional tool clearance and Z-axis utilization. Equipped with radial adjusting screws for precise collet seat alignment, this chuck ensures unparalleled accuracy within .0002 inches. With a lubricated-for-life design, minimal maintenance is required, making it a durable and high-performance option for machining applications. Additionally, the hardened and precision ground components guarantee long-term reliability. Mount stop plates and ejectors inside the chuck body for versatile chucking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

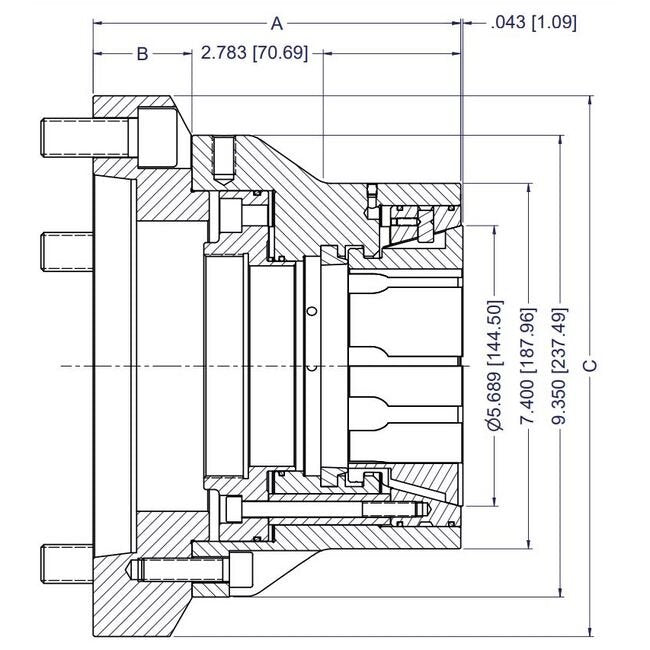

Specifications A Dimension
7.44 in | 188.98 mm
Specifications B Dimension
2 in | 50.8 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
100BZI
Specifications C Dimension
10.95 in | 278.13 mm
Specifications Item No
15 100 172
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
4.000 in | 102 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
85.1 lb | 38.6 kg
