CB-NX Collet Chuck - Dead Length Design for Precision Machining Operations
CB-NX Collet Chuck - Dead Length Design for Precision Machining Operations
SKU:QUI-b82581
Maximize tool clearance and precision with the CB-NX Collet Chuck - perfect for intricate machining operations.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
CB-NX Collet Chuck - Dead Length Design for Precision Machining Operations
$499.99
Quantity: 1
Claim Your Seller Account
CB-NX Collet Chuck - Dead Length Design for Precision Machining Operations
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

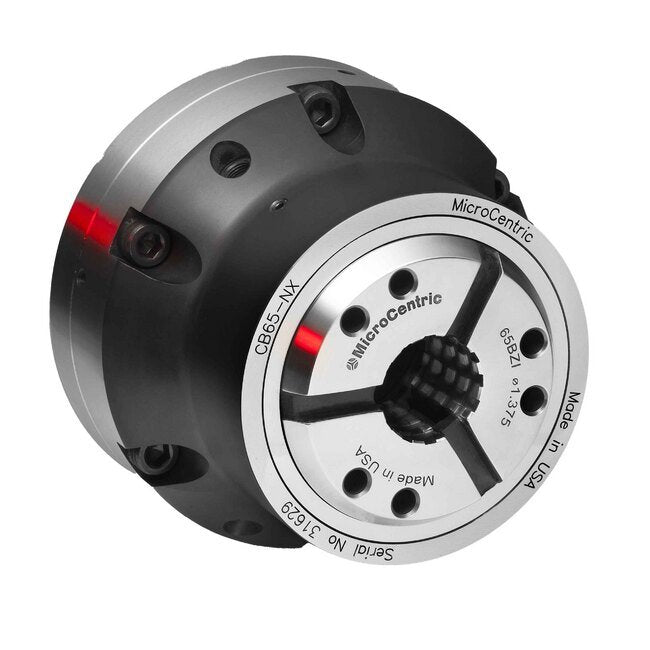

The CB-NX Collet Chuck features a low-profile dead length design with a reduced diameter nose, providing maximum tool clearance for precision machining operations. Designed for institutional and government buyers, this chuck ensures fixed collet positioning in the Z axis during clamping, eliminating any pull back effect on bar stock or workpiece. With radial adjusting screws for precise taper seat alignment, lubricated-for-life design, and all components hardened and precision ground, this chuck guarantees high accuracy, longevity, and minimal maintenance requirements. Stop plates, housings, and ejectors can be easily mounted inside the chuck body for streamlined chucking applications, making it an ideal choice for demanding machining environments.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

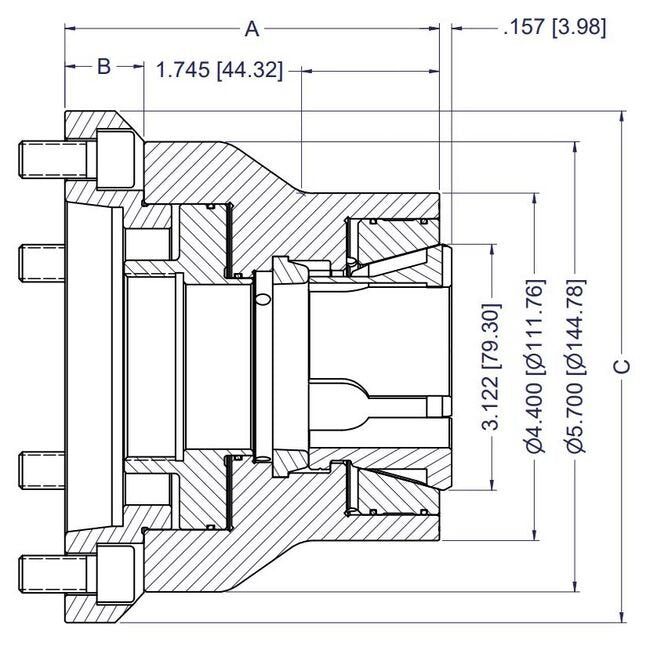

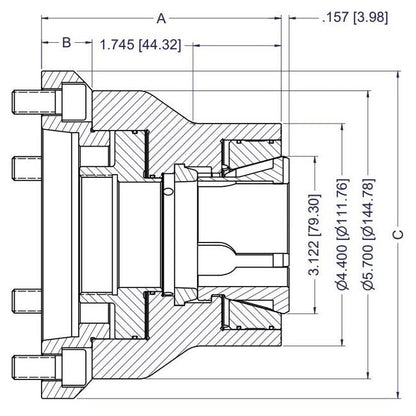

Specifications A Dimension
4.74 in | 120.4 mm
Specifications B Dimension
1 in | 25.4 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
52BZI
Specifications C Dimension
6.48 in | 164.59 mm
Specifications Item No
15 052 103
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.000 in | 52 mm
Specifications Max Clamp Force
21,132 lbs | 94 kN
Specifications Max Draw Tube Thread
M75x2*
Specifications Max Speed
7,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
20.20 lb | 9.17 kg
