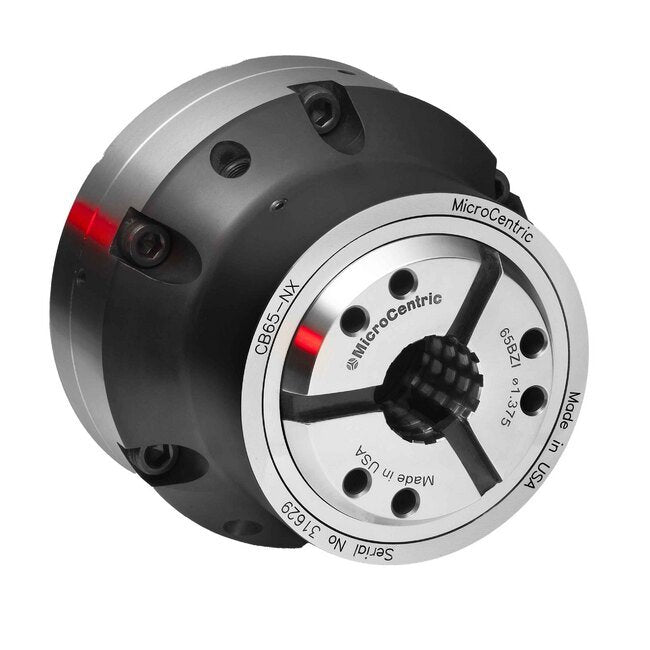

CB-NX Dead Length Collet Chuck
CB-NX Dead Length Collet Chuck
SKU:QUI-bb822d
Enhance machining precision with the CB-NX Dead Length Collet Chuck's low-profile design, radial adjusting screws, and hardened components for superior accuracy and durability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
CB-NX Dead Length Collet Chuck
$799.99
Quantity: 1
Claim Your Seller Account
CB-NX Dead Length Collet Chuck
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NX Dead Length Collet Chuck features a low-profile design with a reduced diameter nose for optimal tool clearance. This chuck securely couples the collet to the chuck body, preventing any pullback effect on the workpiece during clamping. With radial adjusting screws for precise taper seat alignment and a lubricated-for-life design, it offers high accuracy and minimal maintenance requirements. Hardened components ensure durability, and internal mounting options allow for versatile chucking applications.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

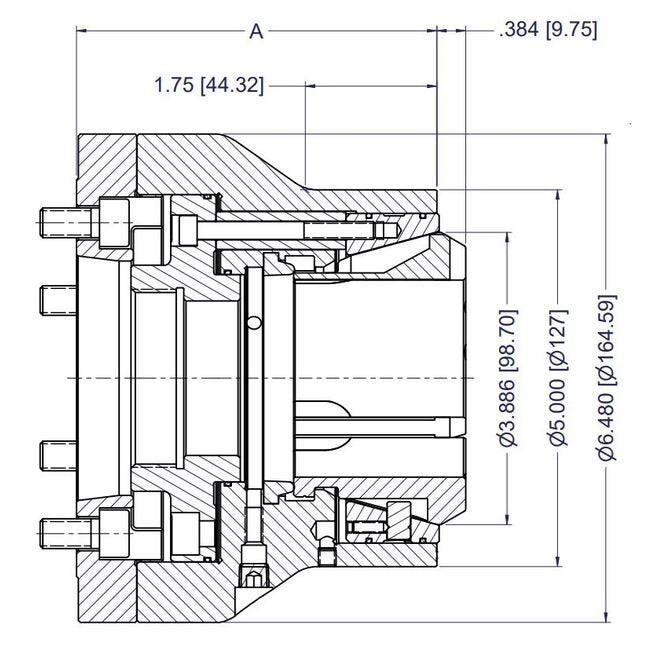

Specifications A Dimension
5.33 in | 135.38 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 141
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,606 lbs | 105 kN
Specifications Max Draw Tube Thread
M80x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
27.7 lb | 12.6 kg
