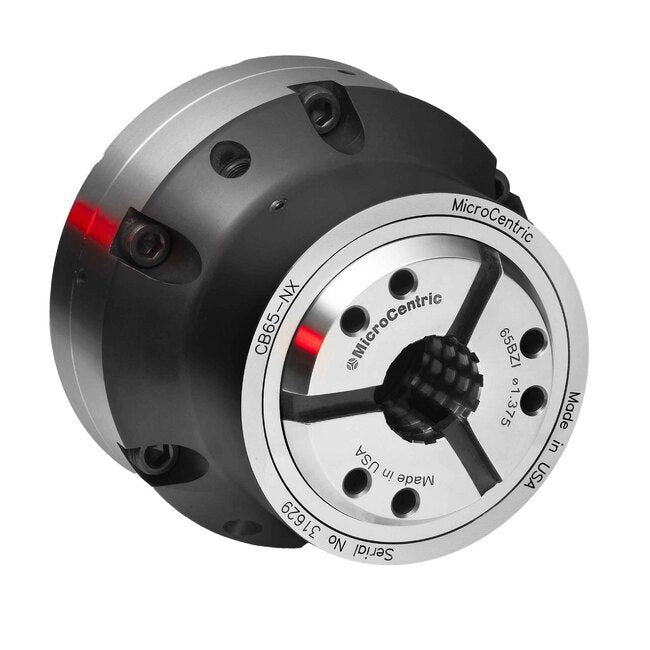

CB-NX Dead Length Collet Chuck
CB-NX Dead Length Collet Chuck
SKU:QUI-43e6d0
Boost machining accuracy with the CB-NX Dead Length Collet Chuck. Low profile design, radial adjusting screws, and hardened components ensure precise and long-lasting performance.
Regular price
$5,799.99
Regular price
Sale price
$5,799.99
Unit price
per
Initiate Order
CB-NX Dead Length Collet Chuck
$5,799.99
Quantity: 1
Claim Your Seller Account
CB-NX Dead Length Collet Chuck
$5,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining precision with the CB-NX Dead Length Collet Chuck. Featuring a low profile design with reduced diameter nose, this chuck offers maximum tool clearance and clamping accuracy. The collet is fixed during operation, eliminating pull back effects. With radial adjusting screws, lubricated-for-life design, and hardened components, it ensures long-lasting performance. Mount stop plates and ejectors inside for versatile chucking applications.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

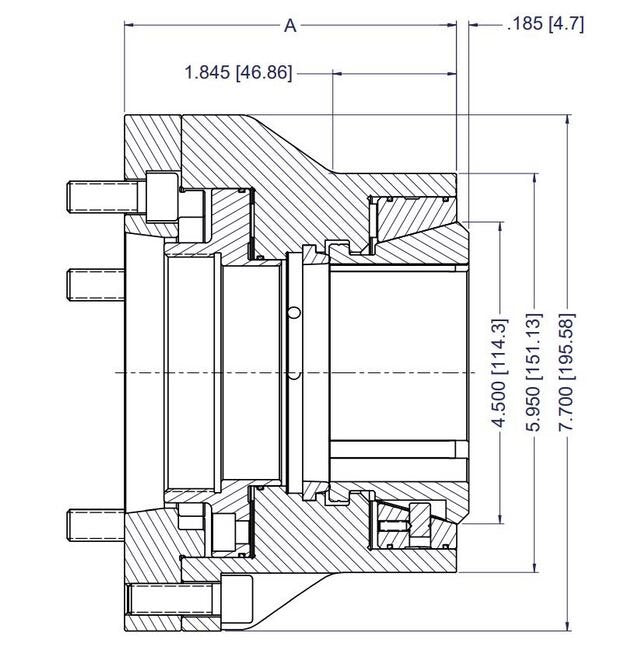

Specifications A Dimension
4.96 in | 125.97 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
80BZI
Specifications Item No
15 080 251
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-6
Specifications Weight
35.6 lb | 16.1 kg
