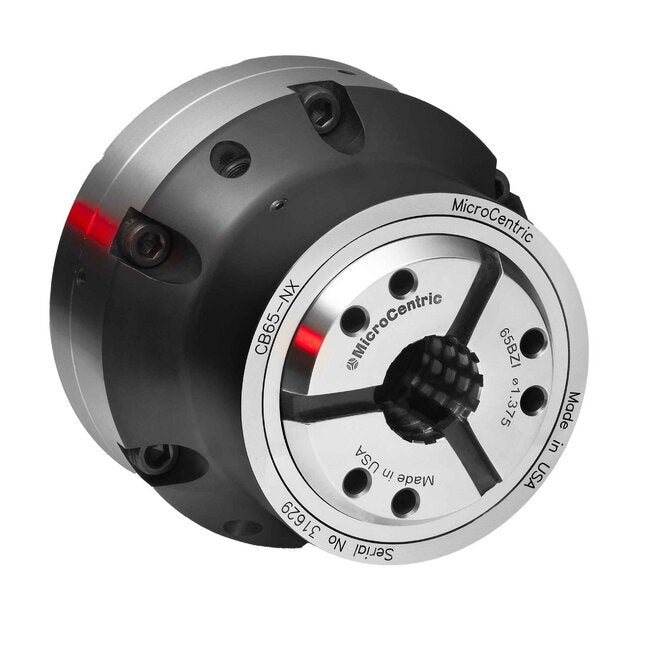

CB-NX Dead Length Collet Chuck
CB-NX Dead Length Collet Chuck
SKU:QUI-92c0e8
Enhance tool clearance with the precision and durability of the CB-NX Dead Length Collet Chuck. Optimal for maintaining tool stability with minimal maintenance requirements.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
CB-NX Dead Length Collet Chuck
$399.99
Quantity: 1
Claim Your Seller Account
CB-NX Dead Length Collet Chuck
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NX Dead Length Collet Chuck features a low profile design with a reduced nose diameter for optimal tool clearance. This chuck ensures the collet remains fixed during clamping, eliminating pullback effects on workpieces. With radial adjusting screws for precise alignment and a lubricated-for-life design, maintenance is minimal. Hardened components guarantee accuracy and durability, while internal mount options enhance chucking applications.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

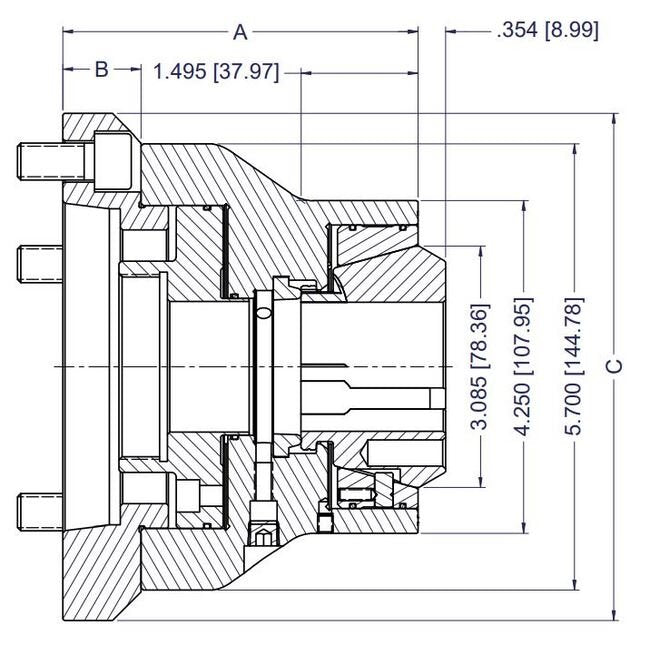

Specifications A Dimension
2.543 in | 115.39 mm
Specifications B Dimension
1 in | 25.4 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
42BZI
Specifications C Dimension
6.48 in | 164.59 mm
Specifications Item No
15 042 142
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M75x2*
Specifications Max Speed
7,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-6
Specifications Weight
20.33 lb | 9.22 kg
