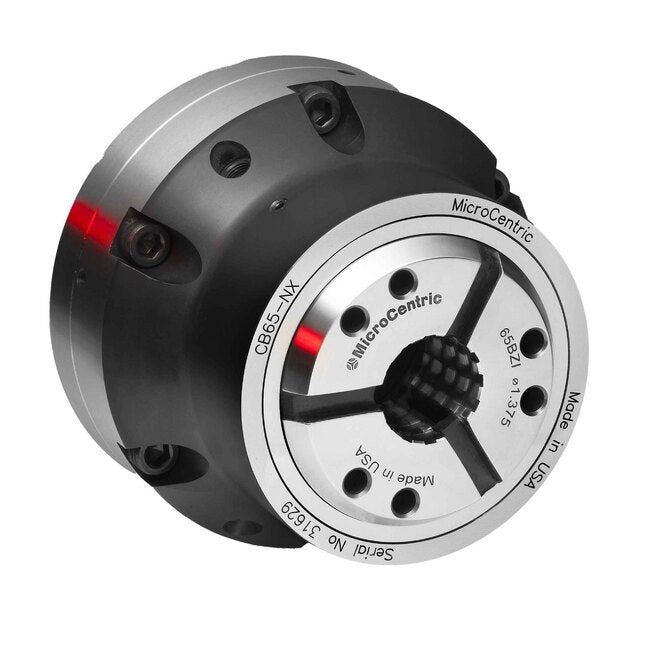

The CB-NX Quick Change Collet Chuck features a low profile dead length design with a reduced nose diameter for optimal tool clearance. With radial adjusting screws ensuring precise seat adjustment within .0002", this chuck offers unmatched accuracy and minimal maintenance. Designed for institutional use, it meets stringent standards for max clamp force, spindle nose compatibility, and max clamping and draw tube thread specifications for superior machining performance and longevity. The integrated stop plates and ejectors enable seamless chucking applications.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

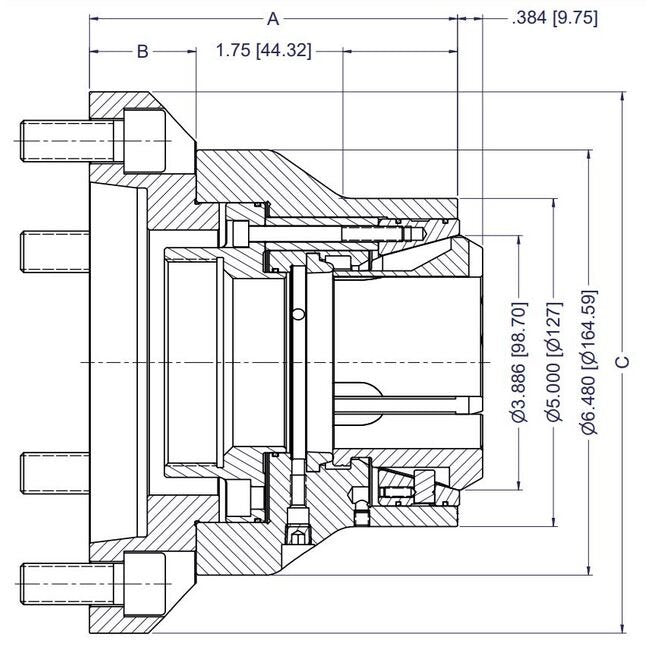

Specifications A Dimension
5.605 in | 142.37 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 065 142
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,606 lbs | 105 kN
Specifications Max Draw Tube Thread
M80x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
34.2 lb | 15.5 kg
