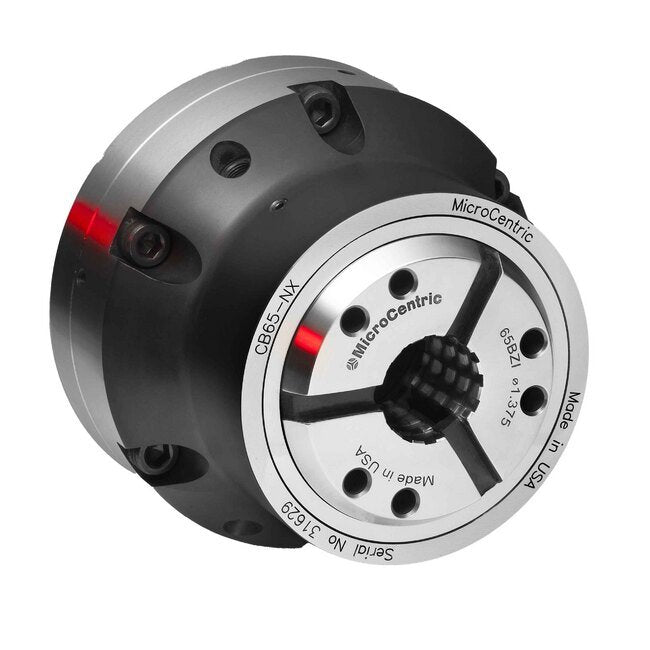

The CB-NX Quick Change Collet Chuck features a low profile dead length design with a reduced diameter nose, providing maximum tool clearance and efficient utilization of the Z axis. With radial adjusting screws for precise collet seat alignment within .0002", this chuck ensures exceptional accuracy. Its lubricated-for-life design minimizes maintenance needs, while all hardened components guarantee durability and longevity. Ideal for clamping applications, the CB-NX Chuck offers a max clamping force of 21,132 lbs and a linear chuck stroke of .160 in.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

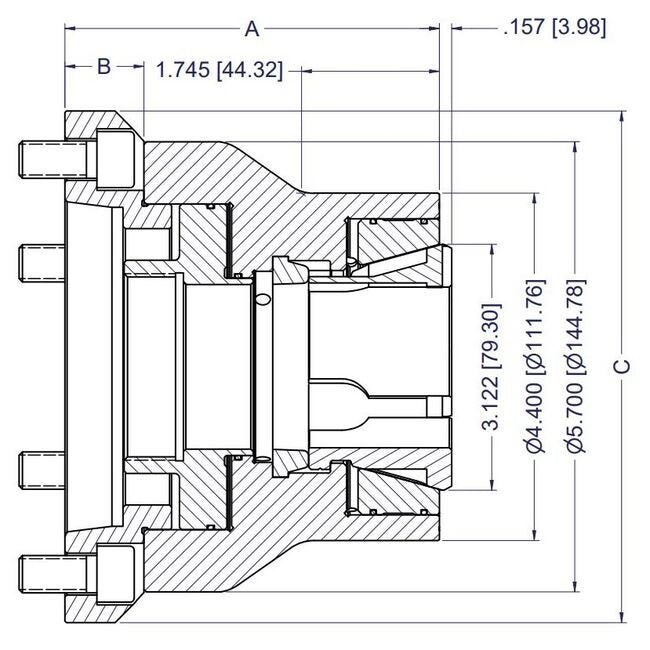

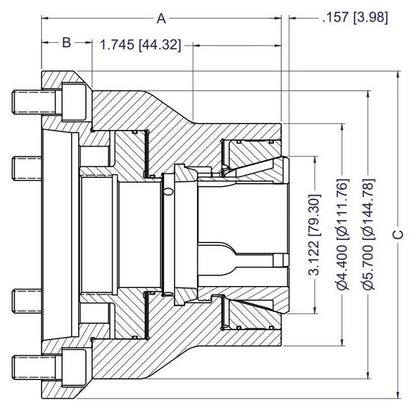

Specifications A Dimension
4.443 in | 112.85 mm
Specifications B Dimension
0.703 in | 17.86 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
52BZI
Specifications C Dimension
5.95 in | 151.13 mm
Specifications Item No
15 052 101
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.000 in | 52 mm
Specifications Max Clamp Force
21,132 lbs | 94 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
7,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Weight
19.21 lb | 8.71 kg
