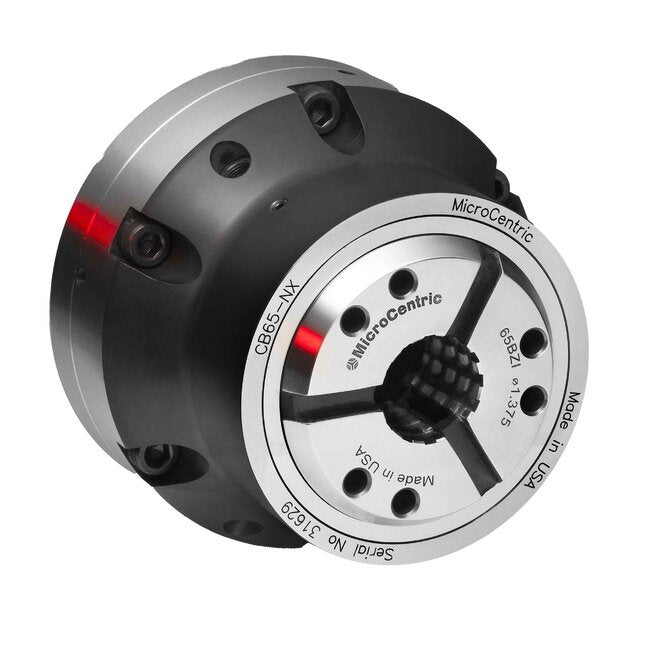

The CB-NX Quick Change Collet Chuck features a low profile dead length design with a reduced diameter nose for optimal tool clearance. Its collet remains fixed during clamping, eliminating pull back effects. With radial adjusting screws for precise seat alignment, this chuck ensures utmost accuracy and longevity. Lubricated-for-life and hardened components make maintenance minimal. Mount stop plates and ejectors inside for versatile chucking applications in institutional settings.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

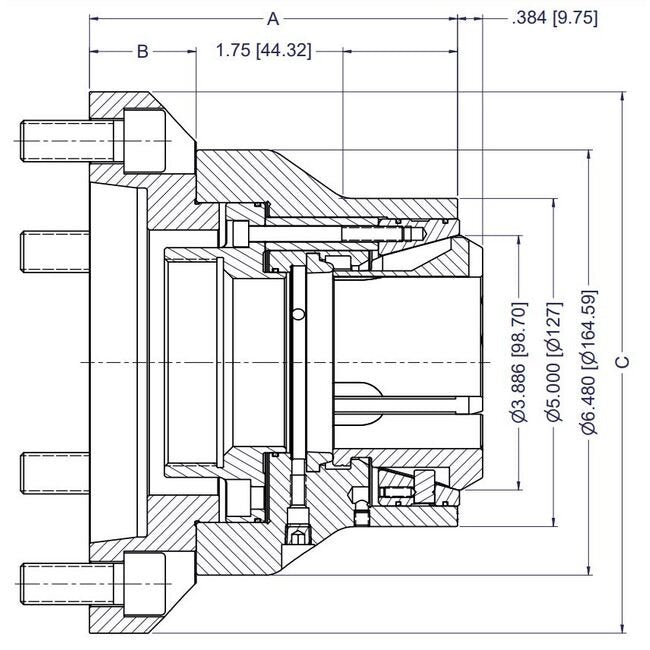

Specifications A Dimension
5.605 in | 142.37 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
65BZI
Specifications C Dimension
9.25 in | 234.95 mm
Specifications Item No
15 065 144
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,606 lbs | 105 kN
Specifications Max Draw Tube Thread
M100x2*
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
39.05 lb | 17.71 kg
