CB-NX Quick Change Collet Chuck - Dead Length Design
CB-NX Quick Change Collet Chuck - Dead Length Design
SKU:QUI-7d51dd
Maximize tool clearance with the CB-NX Quick Change Collet Chuck - Dead Length Design. Radial adjusting screws ensure precision clamping within .0002 inches for high-demand machining applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-NX Quick Change Collet Chuck - Dead Length Design
$899.99
Quantity: 1
Claim Your Seller Account
CB-NX Quick Change Collet Chuck - Dead Length Design
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

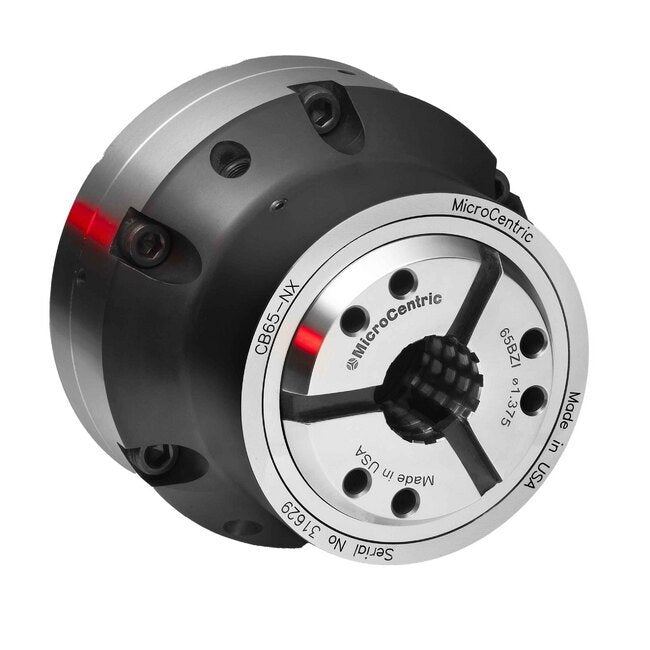

The CB-NX Quick Change Collet Chuck features a low profile dead length design with superior tool clearance. Its reduced diameter nose and radial adjusting screws ensure precise clamping within .0002 inches. With a lubricated-for-life design and all components hardened for accuracy and longevity, this chuck is perfect for high-demand machining applications. Mount stop plates and ejectors inside the chuck body for added versatility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

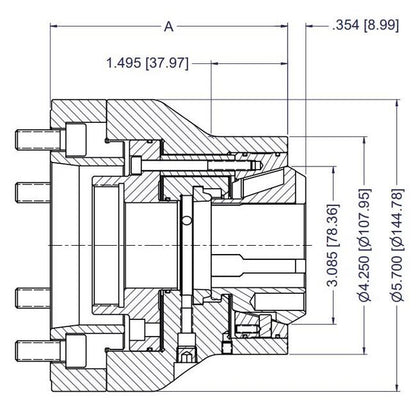

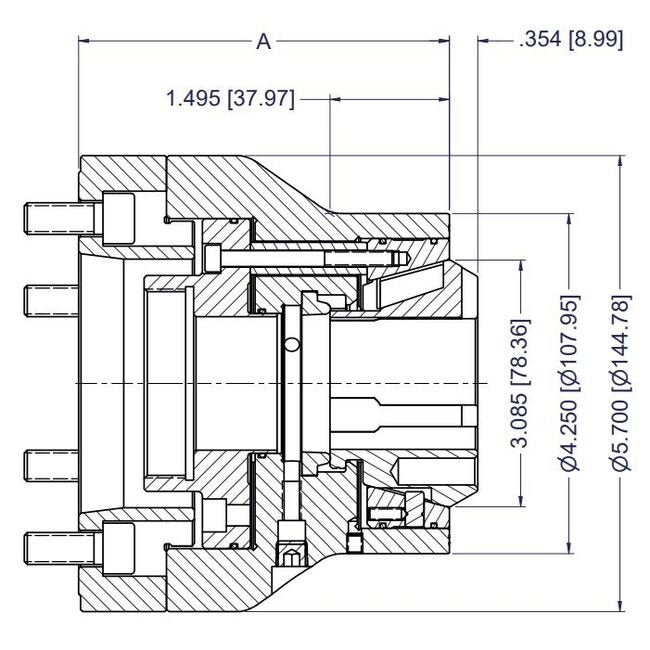

Specifications A Dimension
4.643 in | 117.93 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
42BZI
Specifications Item No
15 042 141
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
7,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-5
Specifications Weight
20.32 lb | 9.22 kg
