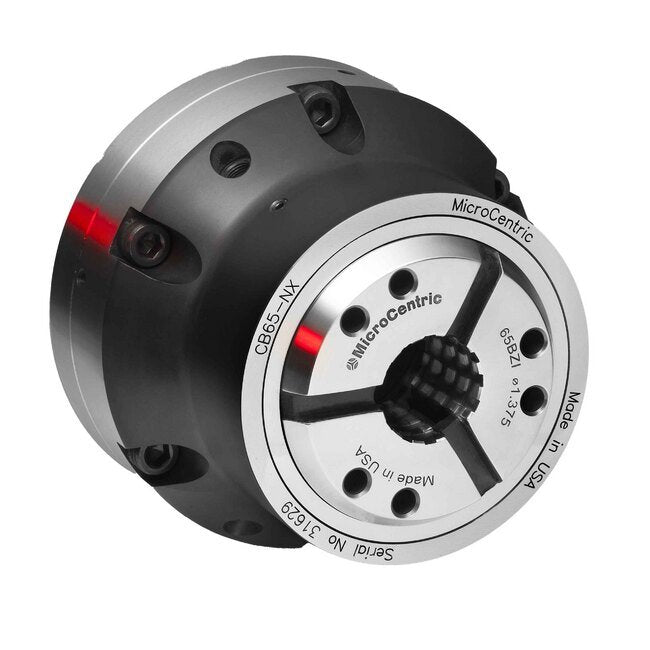

The CB-NX Quick Change Collet Chuck features a low profile dead length design with reduced diameter nose ensuring maximum tool clearance. The fixed collet eliminates pull back effect on workpieces. With radial adjusting screws for precise clamping, this chuck offers lubricated-for-life design, hardened components for accuracy, and internal mounting capabilities. Ideal for institutional buyers needing reliability and efficiency.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

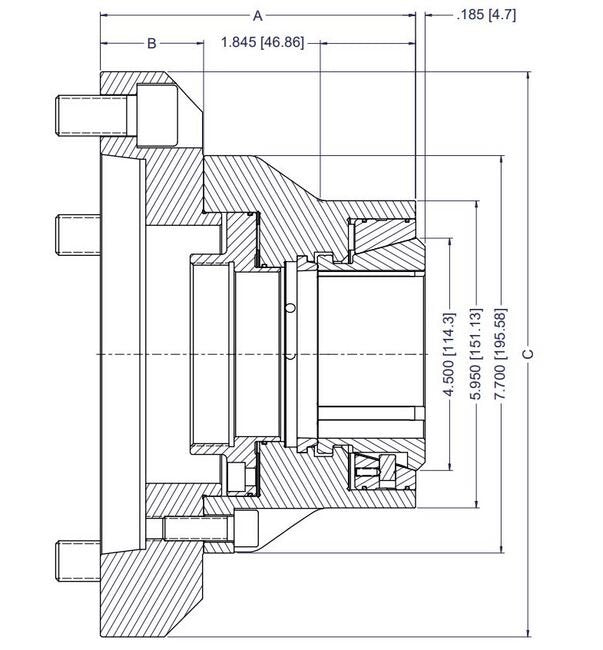

Specifications A Dimension
6.105 in | 155.07 mm
Specifications B Dimension
2 in | 50.8 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
80BZI
Specifications C Dimension
10.95 in | 278.13 mm
Specifications Item No
15 080 253
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M115x2*
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-11
Specifications Weight
59.54 lb | 27.00 kg
