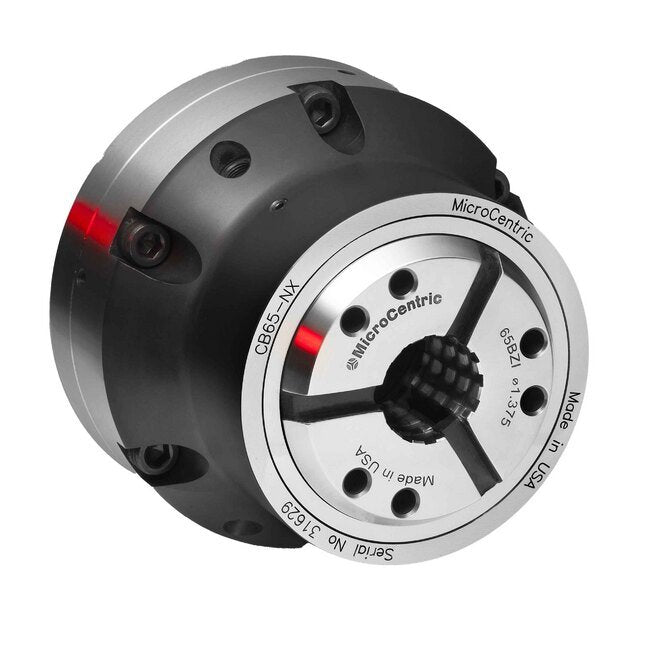

The CB-NX Quick Change Collet Chuck features a low profile dead length design with a reduced diameter nose, providing maximum tool clearance. With a fixed collet in the Z axis during clamping, it eliminates pull back effects on bar stock or workpieces. Its radial adjusting screws ensure precise seating within .0002 inches. This chuck is designed for minimal maintenance with all components hardened and ground for accuracy and longevity. Perfect for institutional and government procurement requirements.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

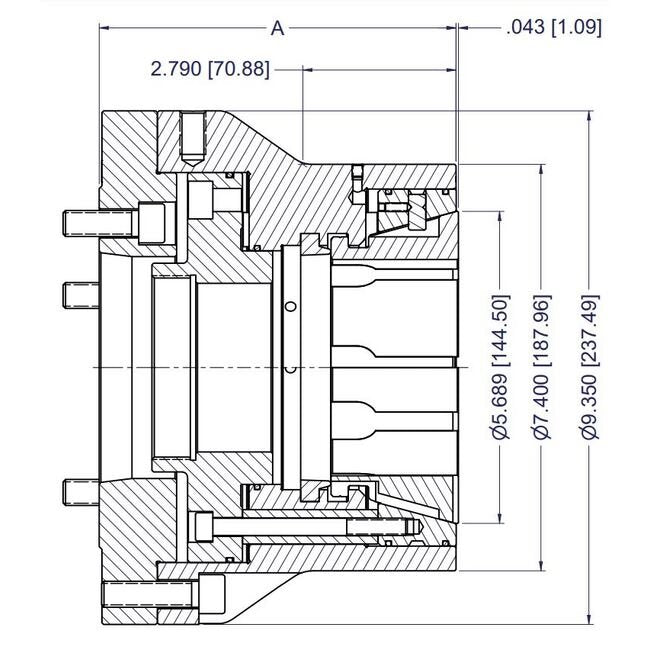

Specifications A Dimension
6.6 in | 167.64 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
100BZI
Specifications Item No
15 100 171
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
4.000 in | 102 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
69.2 lb | 31.4 kg
