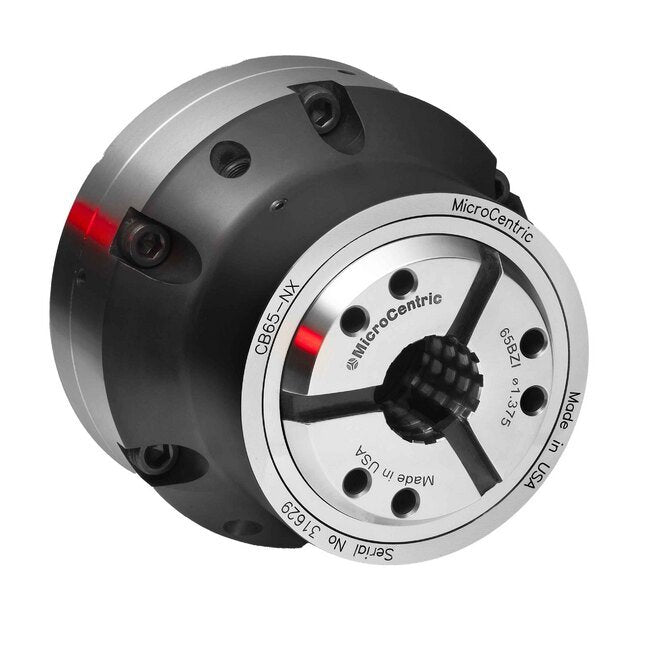

The CB-NX Quick Change Collet Chuck features a low profile dead length design with a reduced diameter nose, maximizing tool clearance and Z-axis utilization. With radial adjusting screws for precise collet seat alignment, lubricated-for-life design for minimal maintenance, and hardened components for accuracy and longevity, this chuck ensures reliable performance. Equipped with a range of features including stop plates and ejectors mountable inside the chuck body, it caters to the needs of industrial machining operations seeking efficiency and precision.
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

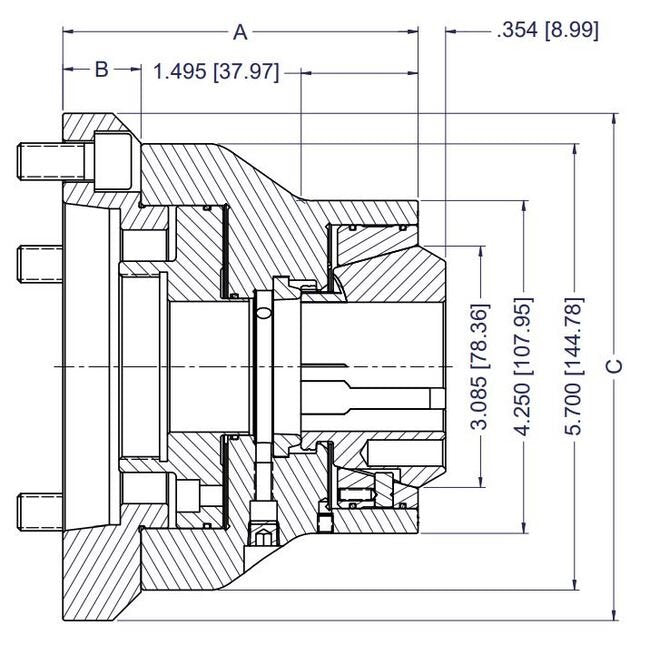

Specifications A Dimension
4.246 in | 107.85 mm
Specifications B Dimension
0.703 in | 17.86 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
42BZI
Specifications C Dimension
5.95 in | 151.13 mm
Specifications Item No
15 042 143
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
7,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
140mm
Specifications Weight
19.30 lb | 8.75 kg
