CC Series Electromagnetic Chuck Controller - 300W Power
CC Series Electromagnetic Chuck Controller - 300W Power
SKU:CCS-6c263f
Efficient 300W CC Series Electromagnetic Chuck Controller with variable power, residual hold, indicating lamps & more.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
CC Series Electromagnetic Chuck Controller - 300W Power
$329.99
Quantity: 1
Claim Your Seller Account
CC Series Electromagnetic Chuck Controller - 300W Power
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

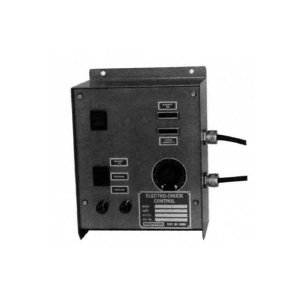

The CC Series Electromagnetic Chuck Controller is a high-performance device suitable for any 110 VDC chuck up to 500 watts. Equipped with a 7 pulse release cycle, this controller ensures consistent release on stubborn parts. With features like variable power, residual hold, and indicating lamps, it offers optimal control. Housed in a heavy-duty, splash-resistant enclosure with dimensions 8" W x 10 1/2" H x 6" D, this unit is designed for reliability and durability. The 120 VAC input voltage, 110 VDC output voltage, and compliance with industry standards make it an ideal choice for industrial applications.
Product Specifications
Additional Information 0
It has a 7 pulse release cycle, indicating lamps, variable power and residual hold feature.
Specifications Ac Input Voltage
120 V
Specifications Center Distances Of Mounting Holes
6 x 10 in
Specifications Dc Output Voltage
110 V
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Main Enclosure Depth
6 in
Specifications Main Enclosure Height
10 1/2 in
Specifications Main Enclosure Width
8 in
Specifications Power
300 W
Specifications Splash Resistant Enclosure Depth
6 in
Specifications Splash Resistant Enclosure Height
9 in
Specifications Splash Resistant Enclosure Width
8 in
