High-performance CC Series Oil-Filled Drawn Oval Capacitor for institutional high voltage applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

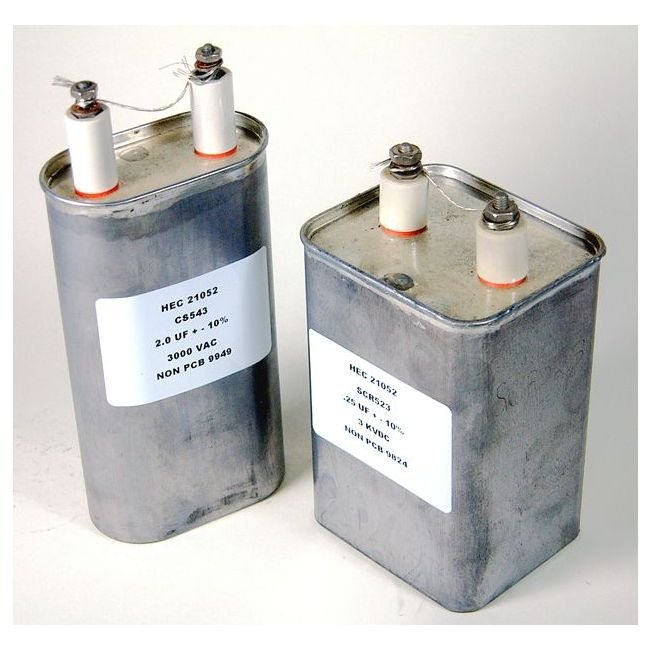

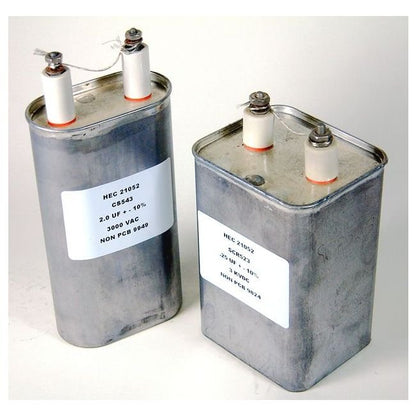

Introducing the CC Series Oil-Filled Drawn Oval Capacitor, designed for high voltage applications in institutional settings. With a capacitance of 5 µF and a voltage rating of 2000 VDC, this capacitor ensures reliable performance. Constructed with plated drawn steel cans, Kraft paper, and polypropylene dielectric, it offers superior insulation resistance and operates efficiently at temperatures ranging from -40 to +90 ºC. The capacitor complies with industry standards for AC ripple voltage, insulation resistance, and can construction, making it an ideal choice for government and institutional procurement needs.

Product Specifications

Specifications Ac Ripple Voltage

The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz

Specifications Can Construction

Drawn Plated Steel | Epoxy Paint

Specifications Cap

5 µF

Specifications Capacitance Range

1 to 20 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Dielectric

Kraft paper and polypropylene with environmentally compatible impregnant

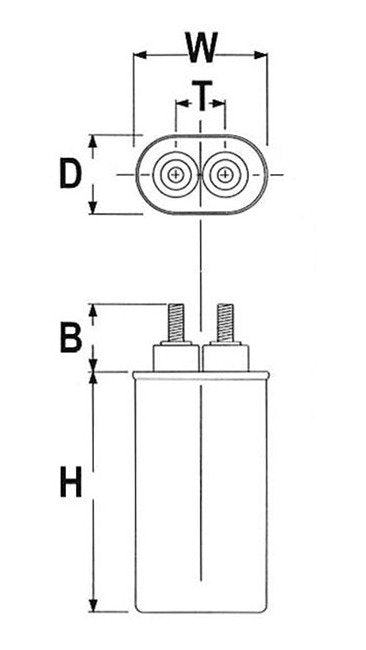

Specifications Dimension B

2 in

Specifications Dimension D

1.97 in

Specifications Dimension H

5.25 in

Specifications Dimension T

1.38 in

Specifications Dimension W

3.66 in

Specifications Insulation Resistance At 25c Typical

25000 MΩ

Specifications Operating Temperature

-40 to +90 ºC

Specifications Voltage Dc

2000 V
