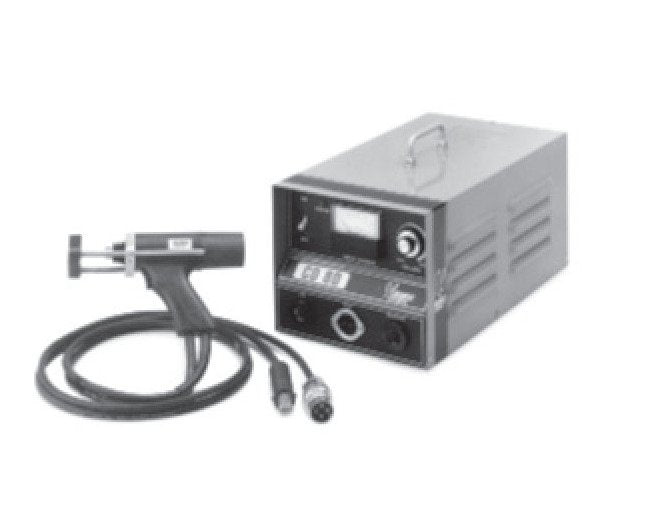

The CD80 Capacitor Discharge Welder by Midwest Fasteners is a standard-duty stud welding system ideal for OEM applications. With a solid state design and modular construction, this welder ensures dependability, versatility, and portability. It offers a long service life and welds aluminum, mild steel, and stainless steel effortlessly. Meets military specification A-A-59331 for stud welding systems with DC integral power source and control unit.
Product Specifications
Cables Ground Cable
#1 x 15 ft (One each)
Cables Gun Extension Set
#1 x 18/2 x 35 ft (Direct to Gun)
Key Features Incoming Power Voltage
115 V
Key Features Maximum Weld Diameter
M8
Key Features Maximum Weld Diameter Decimal
0.3125 in
Key Features Maximum Weld Diameter Fraction
5/16 in
Key Features Minimum Weld Length
6 mm
Key Features Minimum Weld Length Decimal
0.250 in
Key Features Minimum Weld Length Fraction
1/4 in
Key Features Weldable Material
Aluminum | Mild Steel | Stainless
Key Features Weld System
CD 80
Power Requirement Current
20 A
Power Requirement Frequency
60 Hz
Power Requirement Voltage Ac
115 V
Secondary Features Backside Marking On Thinner Material
Unacceptable
Secondary Features Minimum Material Thickness
0.03125 in (22 gauge) | 0.6 mm (22 gauge)
Secondary Features Weld Penetration
Surface Weld, Fail-in-fastener Minimum
Specifications Capacitance
98,000 µF

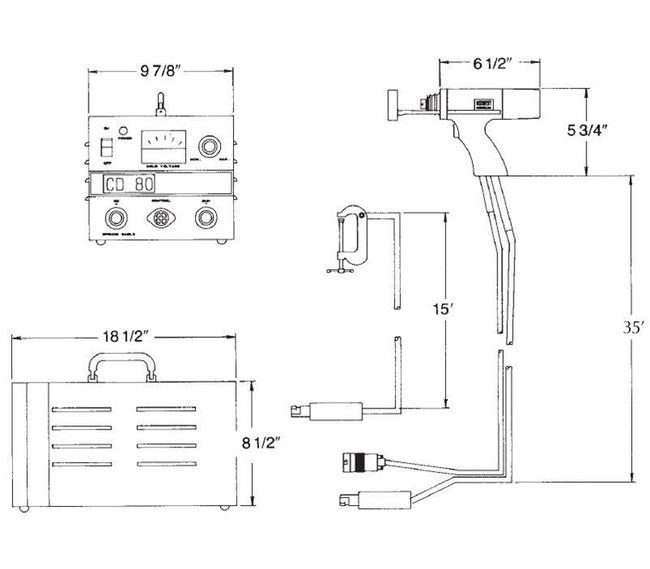

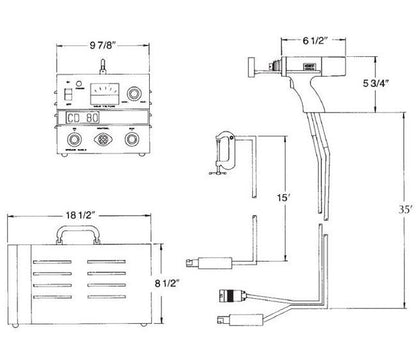

Specifications Depth
21 in
Specifications Height
9 in
Specifications Pinstud Range
14 GA. thru 5/16" Dia. Weld Base
Specifications Stud To Base Weld Area
No Special Requirements
Specifications Weight
56 lb
Specifications Weld Mode
Contact
Specifications Weld Rate
Up to 20/min
Specifications Weld Voltage Dc
35 to 175 V
Specifications Width
13-1/2 in
Weld Gun Cd 2p Precision Material
High strength | impact-resistant polycarbonate
Weld Gun Cd 2p Precision Size Lwh
6-1/2 x 2 x 5-3/4 in
Weld Gun Cd 2p Precision Weight Not Including Cable
1-1/2 lb
