CECO Mefiag Series 6500-HF Horizontal Disc Filtration System
CECO Mefiag Series 6500-HF Horizontal Disc Filtration System
SKU:FIL-7b4ee5
High-capacity CECO Mefiag Series 6500-HF Horizontal Disc Filtration System for efficient nickel, copper, and zinc electrolyte filtration in electroplating operations.
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
CECO Mefiag Series 6500-HF Horizontal Disc Filtration System
$15,999.00
Quantity: 1
Claim Your Seller Account
CECO Mefiag Series 6500-HF Horizontal Disc Filtration System
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

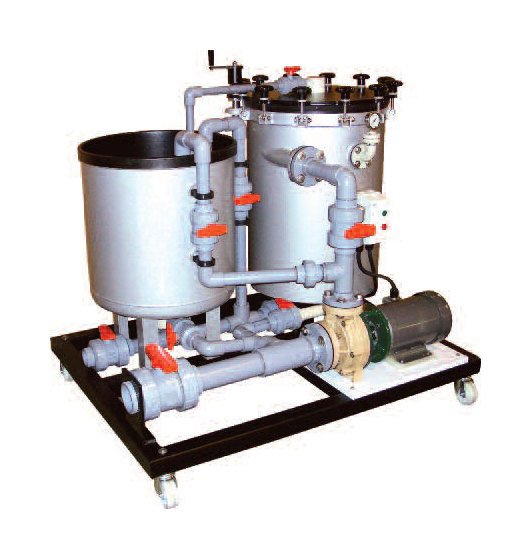

The CECO Mefiag Series 6500-HF Horizontal Disc Filtration System is a top-of-the-line solution for efficient filtration of nickel, copper, and zinc electrolytes, meeting the needs of high-capacity electroplating operations. With a filtration surface area of 89 ft² and a large sludge holding capacity, this system ensures optimal performance. Featuring stainless steel lifting devices for easy maintenance, corrosion resistance, and a choice of filter media options, including cellulose and reusable polypropylene, this system is designed for durability and reliability, suitable for plating tanks from 1,000 to 4,000 gallons.
Product Specifications
Features Features
Flow rates to 6,500 GPH Horizontal disc technology Maximum surface area (1 sq. ft. per 100 GPH!) Large sludge holding capacity Superior corrosion resistance FRP pump with choice of mechanical seals Temperature to 190ºF (90ºC) Low disposal cost Choice of cellulose, carbon/cellulose or reusable polypropylene filter media Powder coated steel frame with casters for easy handling NEMA 4 water tight, corrosion resistant starter Mechanical cover lifting device for easy access to filter pack Bottom plate and lifting rod for quick change of disc stack standard (optional for 6500)
Filter Filter

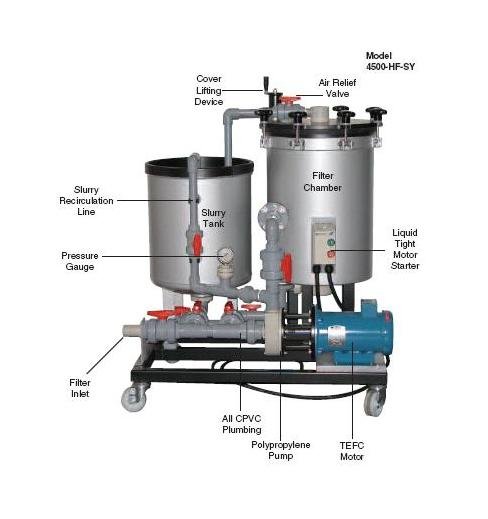

Filter chambers are constructed of mild steel with hard rubber lining (3 mm) on the interior and corrosion resistant paint (2 coats) on the exterior.A flanged tangential inlet is standard, along with a bottom outlet and drain.Stainless steel eyebolts with handwheels hold the powder coated steel cover in place. The lifting device provides for mechanical movement of the cover for maintenance purposes. An air release valve positioned on the cover, is also used as the return line during pre-coating.A pressure gauge (0-60 PSI) is supplied with a corrosion resistant guard.Filter media suited for the application is placed between the rigid polypropylene filter discs. Filter media of various materials and micron ratings are available. Ten (10) micron cellulose is standard.All systems are mounted on a powder coated structural steel frame with casters for easy handling.
Piping Valves And Connections Piping Valves And Connections
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
Pump Pump

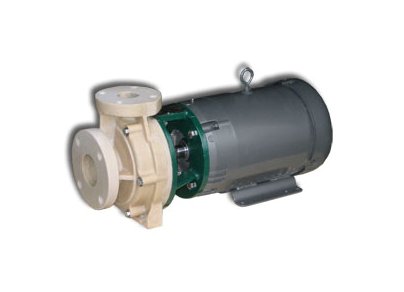

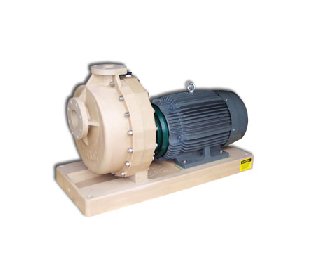

Fybroc fiberglass centrifugal pumps are standard. Mechanical seal options are single CRS- 35/B with silicon carbide faces or double water flush.
Slurry Tank Specifications Slurry Tank Specifications
Slurry tanks are mild steel construction with an interior ofhard rubber (3 mm) and an exterior of corrosion resistant paint (2 coats). They are used to facilitate pre-coating and addition of activated carbon (if required), as well as solution make-up and priming of the pump. The slurry tank can also be used to store solution from the filter chamber during changing of media or maintenance. Pre-coating provides superior filtration and extends the life of the filter media.
Specifications Filter Media Diameter
19 "
Specifications Filtration Surface Area
89 ft²
Specifications Height
59 "
Specifications Length
59 "
Specifications Motor Tefc
5 HP Fybroc Series 1530
Specifications Number Of Filter Media
50
Specifications Open Pumping Capacity
9,500 gph
Specifications Precoated Flow Rate Filtering Capacity
6,500 gph
Specifications Pump Options
FYBROC 1530 Fiberglass Pump - Standard
Specifications Sludge Holding Capacity
2.38 ft³
Specifications Slurry Tank Option
NO SLURRY TANK - Standard | WITH SLURRY TANK - Adder
Specifications System Connections Discharge
2.0" NPT (Female)
Specifications System Connections Suction
3" NPT (Female)
Specifications Weight
1280 lbs
Specifications Width
44 "
Vd Lid Assembly Vd Lid Assembly

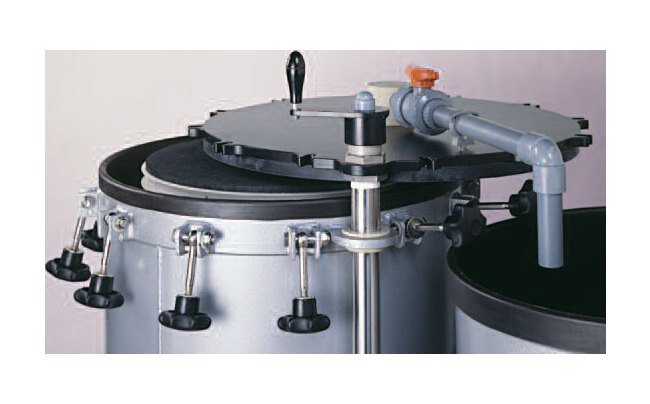

VD Lid assembly is used to tighten down the disc stack verses the cover. (Optional)
X Construction X Construction
X-construction is used for more aggressive solutions such as acid copper, acid zinc, and acid tin. The filter chamber and slurry tank are outside rubber lined, the base and cover are powder coated and the pump shaft is titanium.
