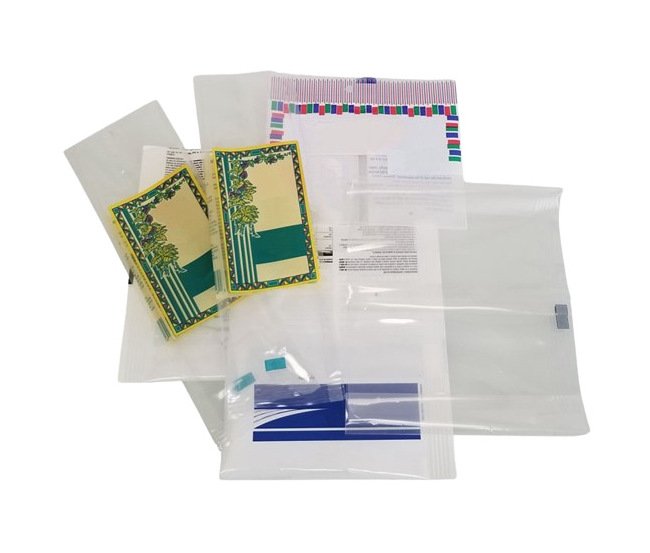

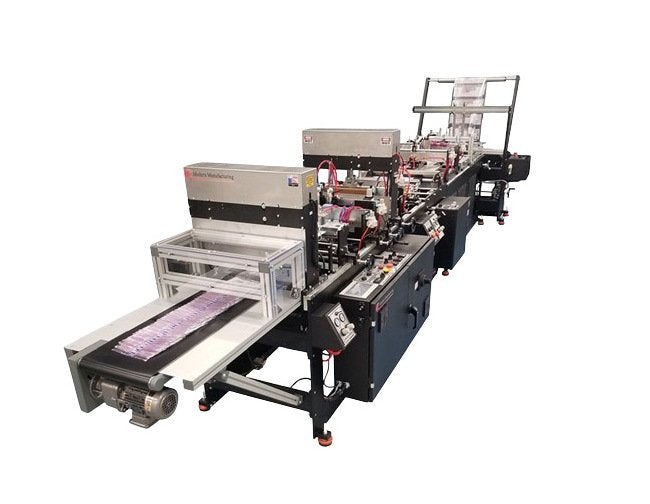

The Center Seal Pouch Machine has the unique capability to produce center seal bags with or without gussets, lap seal, and fin seal style center seal.
Product Specifications
Equipment Options
Optional Punch Shapes and SizesTear notch, hanger hole, sombrero, corner round, handle hole.Digital Readouts for Carriage PositioningProvides a more precise location positioning with absolute or incremental settings. Inch and metric conversion provided.Coreless Trim RewinderEasy change spools, traverse wound trim with small foot print.Vacuum Punch Slug RemovalThis option provides a clean vacuum removal system for punch slugs.
Features
Fully adjustable forming system with no shoe change required for pouch size changeLowest scrap rates for short runsCompact for a smaller footprintLap Seal or Fin Seal PouchesEasy changeovers
Technical Specs Alternative Current Ac Voltage
220 V
Technical Specs Current
60 A
Technical Specs Maximum Gusset Size
1.375 in
Technical Specs Maximum Lay Flat Web Width
30 ft
Technical Specs Maximum Pouch Height
3 to 24 in
Technical Specs Maximum Pouch Width
12 in
Technical Specs Maximum Roll Diameter
20 in
Technical Specs Mechanical Speed
100 cycles/min
Technical Specs Minimum Gusset Size
0.5 in
Technical Specs Minimum Pouch Width
3.5 in
Technical Specs Phase
3
Technical Specs Servo Actuated Machine Air Pressure
5 ft³/min
Technical Specs Standard Core Size
3 in
