Centurion Elite Z200X EMI Shielded Carrying Case

Centurion Elite Z200X EMI Shielded Carrying Case

CAR-125ae6

Certified EMI shielded carrying case for portable applications, offering 45 dB protection. Customizable sizes and finishes available.

$199.99
$199.99
Sale

Initiate Order

Centurion Elite Z200X EMI Shielded Carrying Case

Centurion Elite Z200X EMI Shielded Carrying Case

$199.99

Quantity: 1

Claim Your Seller Account

Centurion Elite Z200X EMI Shielded Carrying Case

Centurion Elite Z200X EMI Shielded Carrying Case

$199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Centurion Elite Z200X Series Carrying Cases offer advanced EMI shielding, providing a minimum of 45 dB protection from 30MHz to 1GHz. Certified by Chomerics, Inc., these cases ensure secure and economical shielding for portable applications. Featuring an optional environmentally sealed mounting panel, separable hinges, and a keyed lock, these cases are available in various sizes and finishes for customization. Ideal for sensitive equipment, these cases are designed to protect internal components and circuits without compromising performance.

Product Specifications

Note Note
Non-stock or customized cases require additional lead time. Total interior width and length do not include closure inclusion. Important: If you are planning to install a panel in your case, please check dimensioning of closure extrusions for proper fit.Custom finishes available upon request.
Specifications Blank Foam Kit Part Number
M44784-Z212X
Specifications Emienvironmental Protection
Yes
Specifications Finish
Clear Silver Anodized
Specifications Inside Bottom Shell Depth H2
4.50 in
Specifications Inside Total Height
8.00 in
Specifications Inside Total Length
23.90 in
Specifications Inside Total Width
17.90 in
Specifications Inside Upper Shell Depth H1
3.50 in
Specifications Mat Thickness
.051 in
Specifications Net Weight
10.0 lb
Specifications Outside Length
24.00 in
Specifications Outside Width
18.00 in

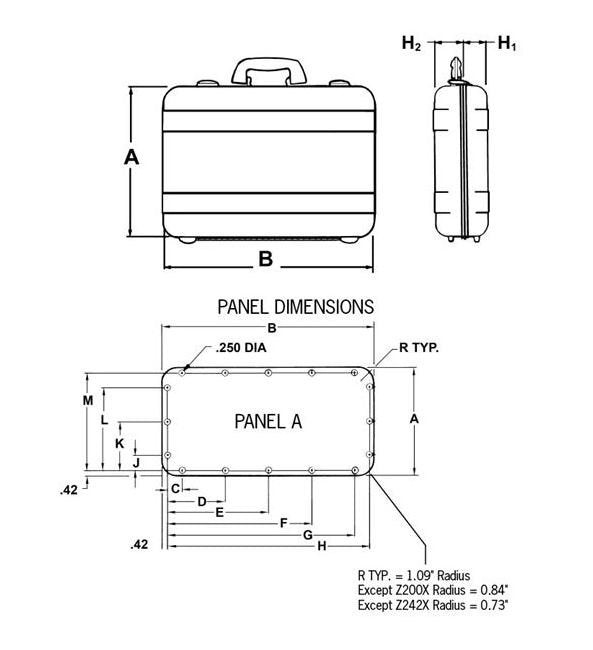

Specifications Panel Options
ZP20568-13
Specifications Standard Hinge Style
Separable
Specifications Standard Lock Style
Keyed
Specifications Stocked Silver
No
Specifications Weather Gasket
Yes
