Centurion Elite Z200X EMI Shielded Carrying Case

Centurion Elite Z200X EMI Shielded Carrying Case

CAR-abef76

Centurion Elite Z200X EMI Shielded Carrying Case - Superior EMI protection for portable applications

$179.99
$179.99
Sale

Initiate Order

Centurion Elite Z200X EMI Shielded Carrying Case

Centurion Elite Z200X EMI Shielded Carrying Case

$179.99

Quantity: 1

Claim Your Seller Account

Centurion Elite Z200X EMI Shielded Carrying Case

Centurion Elite Z200X EMI Shielded Carrying Case

$179.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Centurion Elite Z200X Series Carrying Cases by ZERO set a new standard in EMI shielding capabilities, offering a minimum of 45 dB protection from 30MHz to 1GHz. Designed for portable applications, these cases provide secure and cost-effective shielding solutions. Featuring an optional environmentally sealed mounting panel, they allow open case operation in the field without risking internal components. Certified by Chomerics, Inc., these cases come in 19 standard sizes, with separable hinges, keyed locks, and custom finishes available upon request.

Product Specifications

Note Note
Non-stock or customized cases require additional lead time. Total interior width and length do not include closure inclusion. Important: If you are planning to install a panel in your case, please check dimensioning of closure extrusions for proper fit.Custom finishes available upon request.
Specifications Blank Foam Kit Part Number
M44784-Z206X
Specifications Diced Foam Kit Part Number
M42807-Z206X
Specifications Emienvironmental Protection
Yes
Specifications Finish
Clear Silver Anodized
Specifications Inside Bottom Shell Depth H2
4.50 in
Specifications Inside Total Height
7.50 in
Specifications Inside Total Length
20.90 in
Specifications Inside Total Width
16.90 in
Specifications Inside Upper Shell Depth H1
3.00 in
Specifications Mat Thickness
.051 in
Specifications Net Weight
8.40 lb
Specifications Outside Length
21.00 in
Specifications Outside Width
17.00 in
Specifications Panel Options
ZP20568-9

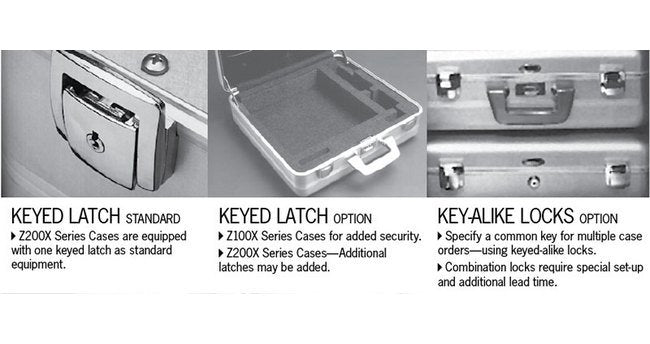

Specifications Standard Hinge Style
Separable
Specifications Standard Lock Style
Keyed
Specifications Stocked Silver
Yes
Specifications Weather Gasket
Yes
