Centurion Elite Z200X EMI Shielded Carrying Cases
Centurion Elite Z200X EMI Shielded Carrying Cases
SKU:CAR-22017e
Secure your equipment with Centurion Elite Z200X EMI Shielded Carrying Cases providing 45 dB protection from 30MHz to 1GHz. Certified shielding tested by Chomerics, Inc.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Centurion Elite Z200X EMI Shielded Carrying Cases
$129.99
Quantity: 1
Claim Your Seller Account
Centurion Elite Z200X EMI Shielded Carrying Cases
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

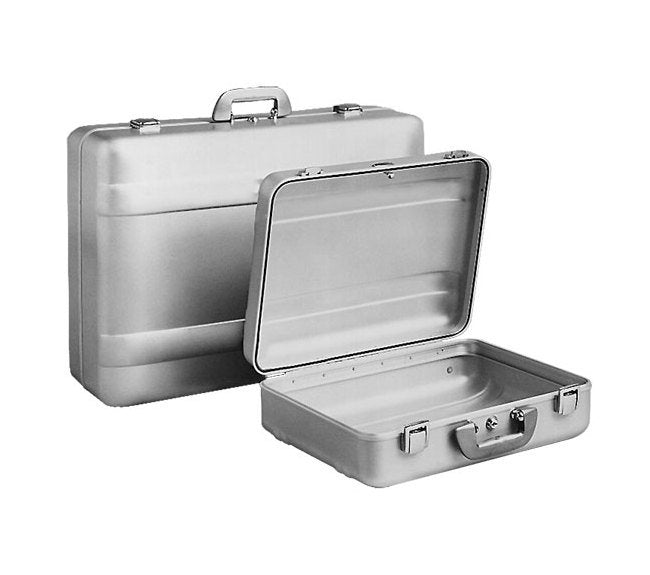

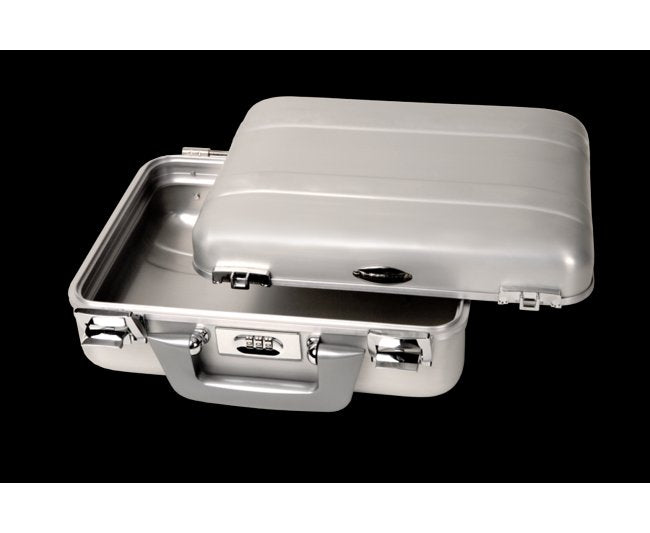

The Centurion Elite Z200X Series Carrying Cases redefine portable EMI shielding with a cutting-edge design that offers a minimum of 45 dB protection from 30MHz to 1GHz. Crafted to deliver secure and cost-effective shielding solutions, these cases come with an optional environmentally sealed mounting panel for field use without compromising internal components. Certified by Chomerics, Inc., experts in EMI/RFI emissions testing, these cases are available in 19 standard sizes, featuring separable hinges, keyed locks, and customizable finishes.
Product Specifications
Exclusionspecial Note Exclusionspecial Note
Bead configuration differs from illustration shown.
Note Note
Non-stock or customized cases require additional lead time. Total interior width and length do not include closure inclusion. Important: If you are planning to install a panel in your case, please check dimensioning of closure extrusions for proper fit.Custom finishes available upon request.
Specifications Blank Foam Kit Part Number
M44784-Z236X
Specifications Emienvironmental Protection
Yes
Specifications Finish
Clear Silver Anodized

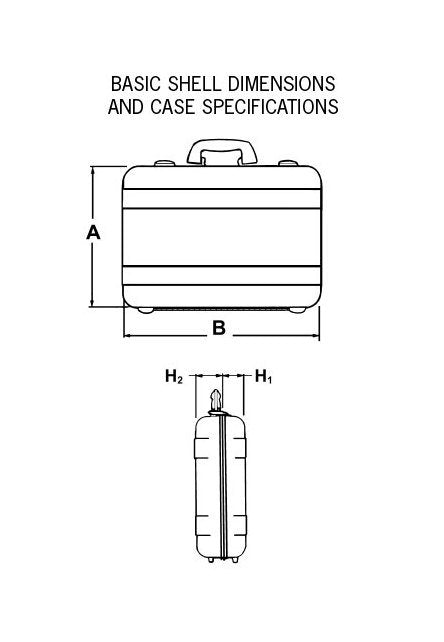

Specifications Inside Bottom Shell Depth H2
4.00 in
Specifications Inside Total Height
7.00 in
Specifications Inside Total Length
18.50 in
Specifications Inside Total Width
13.50 in
Specifications Inside Upper Shell Depth H1
3.00 in
Specifications Mat Thickness
.040 in
Specifications Net Weight
5.7 lb
Specifications Outside Length
18.58 in
Specifications Outside Width
13.58 in

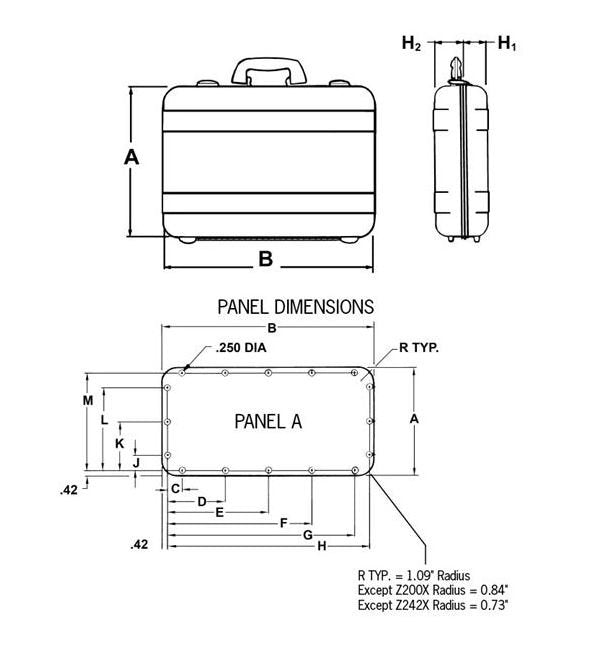

Specifications Panel Options
ZP20568-31

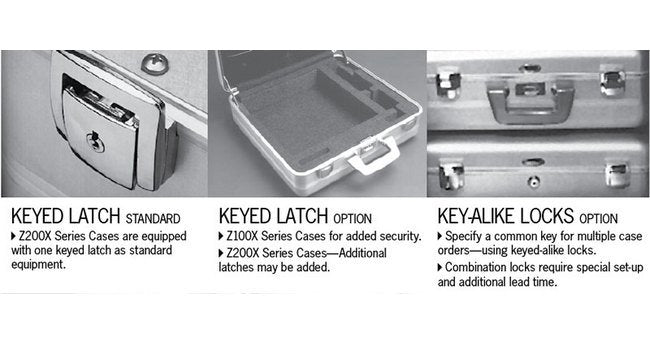

Specifications Standard Hinge Style
Separable
Specifications Standard Lock Style
Keyed
Specifications Stocked Silver
No
Specifications Weather Gasket
Yes
