Centurion Elite Z200X EMI Shielded Carrying Cases
Centurion Elite Z200X EMI Shielded Carrying Cases
SKU:CAR-554d54
Centurion Elite Z200X EMI Shielded Carrying Cases - Superior EMI shielding, certified protection, and customizable configurations for portable applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Centurion Elite Z200X EMI Shielded Carrying Cases
$89.99
Quantity: 1
Claim Your Seller Account
Centurion Elite Z200X EMI Shielded Carrying Cases
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Centurion Elite Z200X Series Carrying Cases offer superior EMI shielding, providing a minimum of 45 dB protection from 30MHz to 1GHz. Designed for portable applications, these cases feature an optional environmentally-sealed mounting panel to safeguard internal components in field situations. Certified by Chomerics, Inc., these cases come in 19 standard sizes with separable hinges and keyed locks. Choose from Clear Silver Anodized or Onyx textured paint finish. Customize configurations to meet your specific needs.
Product Specifications
Note Note
Non-stock or customized cases require additional lead time. Total interior width and length do not include closure inclusion. Important: If you are planning to install a panel in your case, please check dimensioning of closure extrusions for proper fit.Custom finishes available upon request.
Specifications Blank Foam Kit Part Number
M44784-Z211X
Specifications Emienvironmental Protection
Yes
Specifications Finish
Clear Silver Anodized
Specifications Inside Bottom Shell Depth H2
4.00 in
Specifications Inside Total Height
7.00 in
Specifications Inside Total Length
23.90 in
Specifications Inside Total Width
16.90 in
Specifications Inside Upper Shell Depth H1
3.00 in
Specifications Mat Thickness
.051 in
Specifications Net Weight
9.5 lb
Specifications Outside Length
24.00 in
Specifications Outside Width
17.00 in
Specifications Panel Options
ZP20568-13
Specifications Standard Hinge Style
Separable

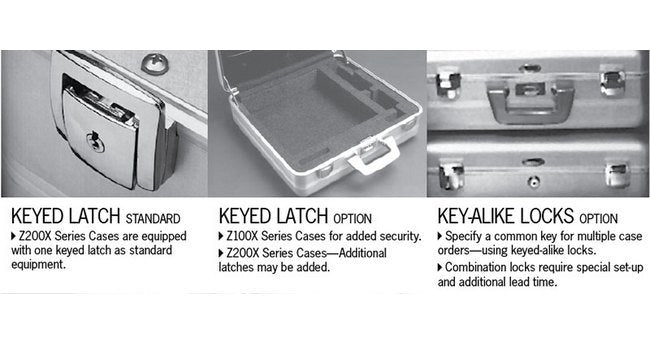

Specifications Standard Lock Style
Keyed
Specifications Stocked Silver
No
Specifications Weather Gasket
Yes
