Centurion Elite Z200X EMI Shielded Carrying Cases
Centurion Elite Z200X EMI Shielded Carrying Cases
SKU:CAR-eda705
Centurion Elite Z200X EMI Shielded Carrying Cases offer portable EMI protection with optional environmental sealing, cert. by Chomerics, Inc. Available in various sizes.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Centurion Elite Z200X EMI Shielded Carrying Cases
$249.99
Quantity: 1
Claim Your Seller Account
Centurion Elite Z200X EMI Shielded Carrying Cases
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

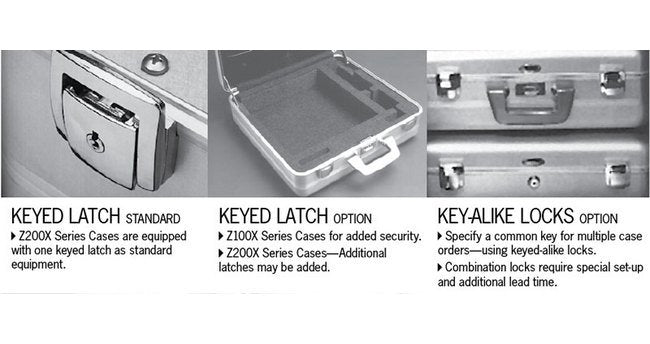

The Centurion Elite Z200X Series Carrying Cases are expertly engineered to provide a minimum of 45 dB protection from 30MHz to 1GHz, meeting stringent EMI shielded requirements for portable applications. These cases boast optional environmentally sealed mounting panels, allowing secure operation in the field without compromising internal components. Certified by Chomerics, Inc., these cases come in 19 standard sizes with clear silver anodized or onyx textured paint finishes. Equipped with separable hinges, keyed lock, and weather gaskets, the Z200X series guarantees both security and customized protection for a wide range of applications.
Product Specifications
Note Note

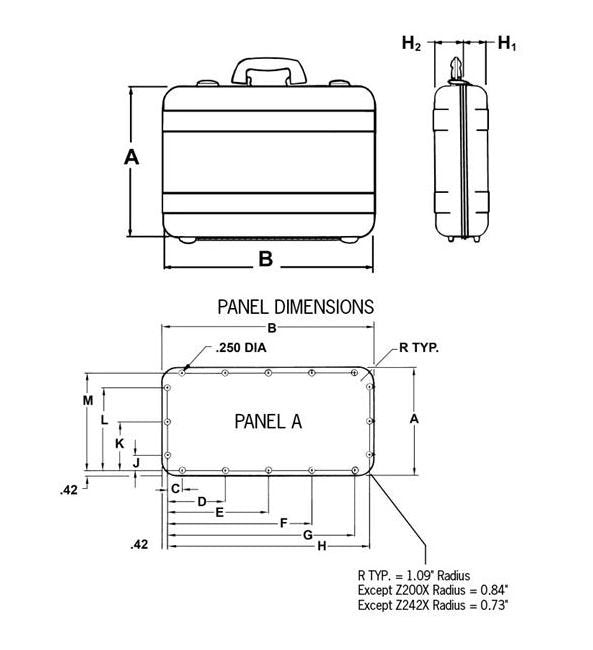

Non-stock or customized cases require additional lead time. Total interior width and length do not include closure inclusion. Important: If you are planning to install a panel in your case, please check dimensioning of closure extrusions for proper fit.Custom finishes available upon request.
Specifications Blank Foam Kit Part Number
M44784-Z207X
Specifications Emienvironmental Protection
Yes
Specifications Finish
Clear Silver Anodized

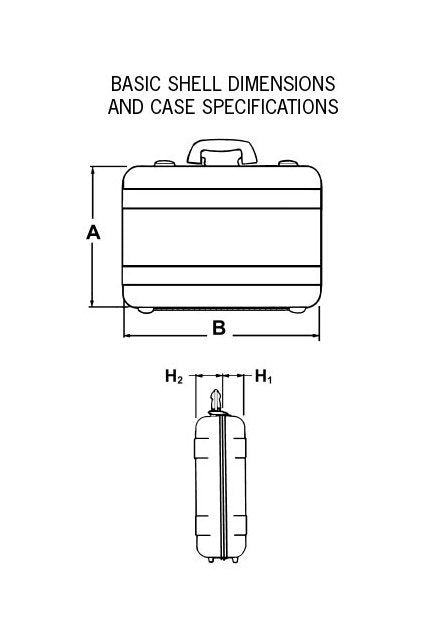

Specifications Inside Bottom Shell Depth H2
3.75 in
Specifications Inside Total Height
7.50 in
Specifications Inside Total Length
20.92 in
Specifications Inside Total Width
12.92 in
Specifications Inside Upper Shell Depth H1
3.75 in
Specifications Mat Thickness
.040 in
Specifications Net Weight
6.30 lb
Specifications Outside Length
21.00 in
Specifications Outside Width
13.00 in
Specifications Panel Options
ZP20568-7
Specifications Standard Hinge Style
Separable
Specifications Standard Lock Style
Keyed
Specifications Stocked Silver
Yes
Specifications Weather Gasket
Yes
