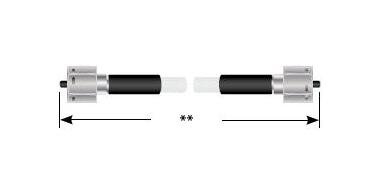

Century+ Shielded Threaded Cable Assembly, Double-Ended Plug

Name: Century+ Shielded Threaded Cable Assembly, Double-Ended Plug
Brand: Teledyne Reynolds
SKU: HIG-ef220e
Price: 129.99 USD
Availability: OutOfStock

SKU:HIG-ef220e

High-performance Century+ Shielded Threaded Cable Assembly for 18 kVDC applications, ideal for Laser Gyroscopes and ECM/Radar systems.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Century+ Shielded Threaded Cable Assembly features a robust design with a Silicone Rubber interface seal, ideal for high voltage applications up to 18 kVDC. Constructed with a plastic insulator and BeCu/Au contacts, it ensures reliable performance in Laser Gyroscopes, Laser Range Finders, and ECM/Radar systems. With a temperature range of -55 to 125 ºC and altitude rating of 70,000 ft., this assembly complies with stringent industry standards, offering a secure and durable connection.

Product Specifications

Body Properties Coupling Nut Material

CRES | Stainless Steel

Contact Properties Contact Material

BeCu/Au with CRES Hood

Contact Properties Contact Size

Contact Properties Contact Type

Female

Specifications Altitudereduced Pressure Rating

70,000 ft.

Specifications Assembly Type

Double-Ended Plug Cable Assembly

Specifications Braid Termination

Band

Specifications Coupling Style

Threaded

Specifications Current Rating

TBD

Specifications Current Rating Rms

12 A

Specifications Export Classification

TBD

Specifications Insulator Material

Plastic

Specifications Interface Seal

Silicone Rubber

Specifications Mating Compatibility

Mates all century plus series threaded receptacles.

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

Century+

Specifications Standardnon Standard

Non-standard Part

Specifications Test Voltage

25 kVDC at 70,000 ft. (simulated) at ambient temperature

Specifications Voltage Rating

18 kVDC

Specifications Wire Insulation

0.100 diameter 'L' type shielded cable with FEP inner & outer insulation. Overall diameter 0.145 | FEP

Specifications Wire Pn

167-8726

Specifications Wire Type

Shielded
