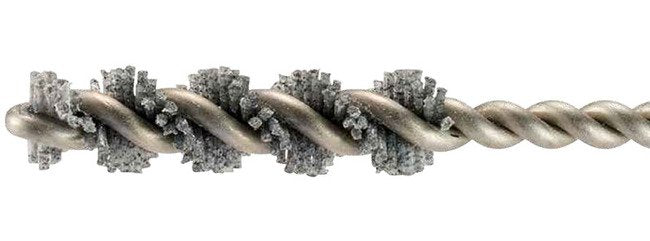

CeramiX® 7/8'' Abrasive Nylon Twisted Brush, 120 Grit
CeramiX® 7/8'' Abrasive Nylon Twisted Brush, 120 Grit
SKU:TWI-63f09a
Enhance deburring and finishing tasks with CeramiX® 7/8'' Abrasive Nylon Twisted Brush, designed for precision and durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CeramiX® 7/8'' Abrasive Nylon Twisted Brush, 120 Grit
$24.99
Quantity: 1
Claim Your Seller Account
CeramiX® 7/8'' Abrasive Nylon Twisted Brush, 120 Grit
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CeramiX® 7/8'' Abrasive Nylon Twisted Brush is a versatile tool designed for internal deburring and finishing applications in tubular components and drilled holes. Featuring a durable galvanized steel shank and a 0.040'' filament diameter, this brush is ideal for CNC machine tools and manual machines. With a single stem, single spiral design and a continuous end, it ensures efficiency and precision in a variety of uses. Meeting stringent industrial standards, this brush promises top-notch performance and durability.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Additional diameters and grits available upon request.Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
7/8 in
Specifications Brush Length
2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.040 in
Specifications Material
CeramiX®
Specifications Overall Length
8 in
Specifications Shank Diameter
1/4 in
Specifications Size
120 grit
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
