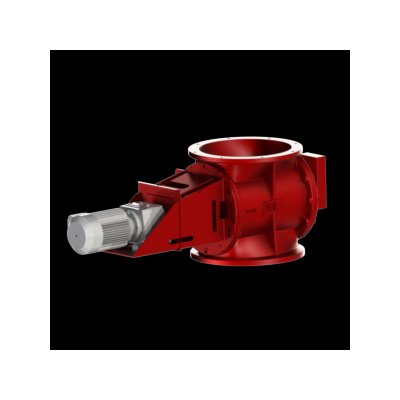

Certified Rotary Valve for Industrial Explosion Mitigation
Certified Rotary Valve for Industrial Explosion Mitigation
SKU:FIR-ab9e20
Enhance industrial safety with NFPA 69 compliant EcoMAXX® EM-RVEX-HTS Rotary Valve for explosion isolation. Certified for ATEX, ideal for industrial filtration & more.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Certified Rotary Valve for Industrial Explosion Mitigation
$1,899.99
Quantity: 1
Claim Your Seller Account
Certified Rotary Valve for Industrial Explosion Mitigation
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial safety with the EcoMAXX® EM-RVEX-HTS Series Certified Rotary Valve. Designed for NFPA 69 compliance and ATEX explosion testing, these rotary valves offer robust explosion isolation in industrial filtration, pneumatic conveying, and bulk handling processes. Choose from standard, medium, or heavy-duty designs with various rotor tip options. Certified to withstand explosive pressures up to 2.5 Bar (39.26 PSI), featuring an 8-vane rotor, direct drive motor, flexible coupling, and gearbox options for precise control. Enhance safety with options like air purge seals, special plating, stainless steel construction, and quick disassembly. Ensure compliance with EN 15089, NFPA 69, and ATEX standards.
Product Specifications
Specifications Standard Features
Sizes: 10 Inch (250mm), 14 Inch (350mm) & 18 Inch (450mm) Certified to withstand Explosive Pressures up to 2.5 Bar (39.26 PSI) 8 Vane Rotor with Options for Steel or Stainless Steel Tips Cast Iron Housing with Flanged Inlet/Outlet Direct Drive Motor with Flexible Coupling and Gearbox Options for Variable Speed Controller, Flange Gaskets, Isolation Box, Air Purge Seals, Special Plating Such As Chromium or Nickel, Stainless Steel Construction and Quick Disassembly are Available.
