CH-100 Tamper Evident Banding Machine
CH-100 Tamper Evident Banding Machine
SKU:PAC-1cc339
Enhance packaging security with the CH-100 Tamper Evident Banding Machine, featuring precise alignment, fast operation, and durable construction for efficient workflow.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
CH-100 Tamper Evident Banding Machine
$4,999.99
Quantity: 1
Claim Your Seller Account
CH-100 Tamper Evident Banding Machine
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

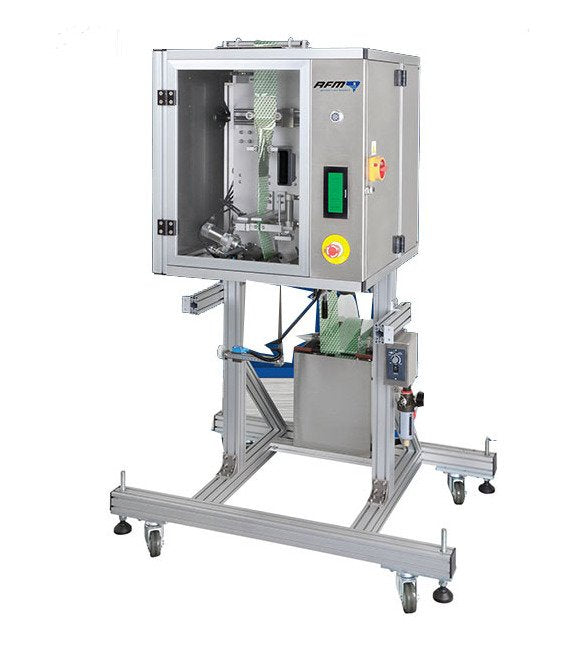

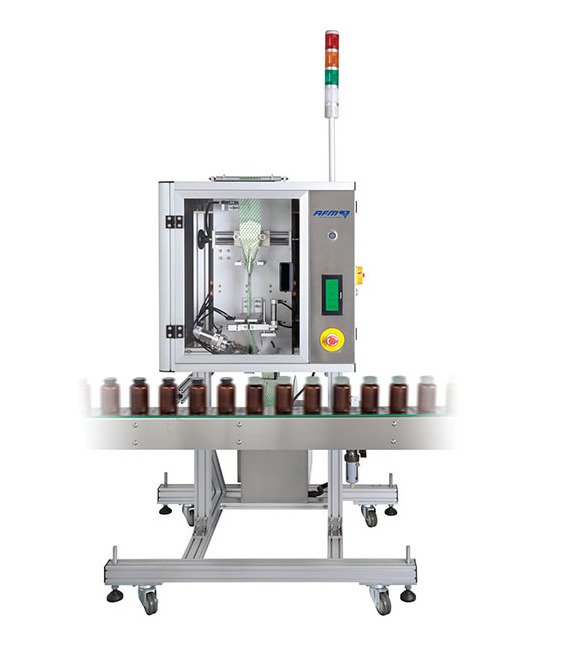

The CH-100 Tamper Evident Banding Machine by American Film & Machinery is an essential solution for industries requiring secure packaging. With precise film alignment, consistent band application, and a single unwind system with tension control, this machine ensures efficient operations. Its butterfly mandrel and user-friendly touchscreen interface enhance workflow accuracy and speed, making it ideal for round bottles of various materials. The durable stainless steel construction and quick-change system minimize downtime, while the stepper motor-driven design guarantees reliable performance, even at speeds of up to 120 cpm. Trust the CH-100 for rugged design, enhanced productivity, and cost-effective shrink sleeve and tamper band application.
Product Specifications
Additional Information Additional Information
CH-100's compact housing is constructed from 304 grade stainless steel and anodized aluminum to provide strength and reduce vibration while offering quiet operation. Product runs are programmed with the user-friendly touch-screen control interface, making setup and operation fast and easyAROUND THE CLOCK OPERATIONCH-100 Tamper Band Applicators are designed with stepper motor driven, single film unwind with tension control, cutter assembly, and pneumatic cylinder to provide accurate and consistent tamper band application. CH-100 has been engineered to handle round bottles made of plastic, glass, or metal at speeds of up to 120BPM. The single blade guillotine cutting mechanism provides extremely smooth, even cutting of PVC/PETG film 50 to 70 microns in thickness.SIMPLE DESIGN, LOW MAINTENANCEOur machines feature a single unwind system with tension control for proper film alignment, and our photo eye sensor system allows for register cutting, guaranteeing accurate cutting of the film or consistent band application on the container. The CH-100 also comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.THE RIGHT CHOICERugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Key Features Key Features

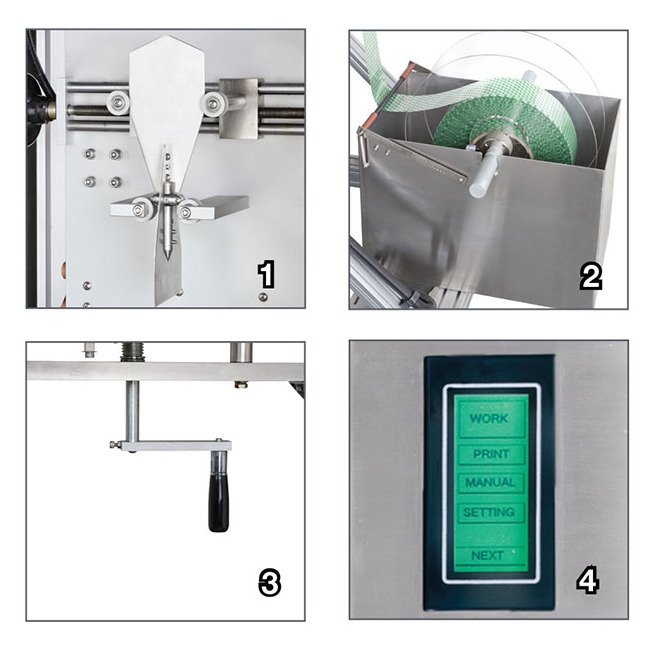

Butterfly MandrelCH-100's Butterfly Mandrel is an ideal solution for accurate placement of shrink and tamper bands on a variety of containersSingle Unwind SystemThe Single Unwind System with tension control ensures proper film alignment or accurate feeding and cuttingSimple Conveyor Height AdjustmentEasy-to-use hand crank allows for ideal height adjustment on virtually any conveyorControl InterfaceProduct runs are programmed with the user-friendly touchscreen control interface
Machine Dimensions Machine Height
1620 to 2000 mm | 63.8 to 78.76 in
Machine Dimensions Machine Length
1130 mm | 44.5 in
Machine Dimensions Machine Width
1000 mm | 39.4 in
Optional Features And Components Optional Features And Component
Label tamp down deviceTiming screw or wheel
Power Phase
1
Power Voltage
220 V
Specifications Cut Length
20 to 50 mm
Specifications Film Lay Flat
40 to 150 mm
Specifications Film Thickness
0.05 to 0.07 mm
Specifications Speed
20 to 120 cpm
Standard Components Standard Components
Stepper motor drivenButterfly mandrelPneumatic cutting bladePhoto eye for registered cuttingSingle unwind system and tension control
