Champion® 36 Inch Oil-Lubricated Reciprocating Air Compressor
Champion® 36 Inch Oil-Lubricated Reciprocating Air Compressor
SKU:CHA-0331e8
Powerful 7-1/2 hp Champion® Reciprocating Air Compressor with 120 gal tank capacity for reliable industrial performance.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Champion® 36 Inch Oil-Lubricated Reciprocating Air Compressor
$2,899.99
Quantity: 1
Claim Your Seller Account
Champion® 36 Inch Oil-Lubricated Reciprocating Air Compressor
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

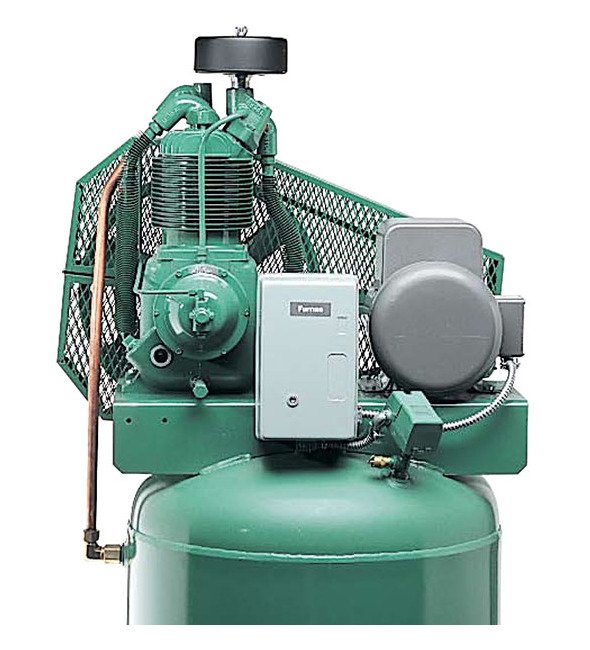

The Champion® 36 Inch Oil-Lubricated Reciprocating Air Compressor from the R and PL Series is a reliable industrial-grade solution for a wide range of applications. With a powerful 7-1/2 hp motor and a tank capacity of 120 gallons, this compressor offers high performance, long life, and user-friendly operation. Featuring a slow-speed operation, rugged construction, and a 5-year warranty on the compressor pump, it ensures durability and quality. Ideal for automotive, dry cleaning, industrial, refineries, and service fleets, this compressor delivers consistent, high-quality compressed air.
Product Specifications
Additional Information 0

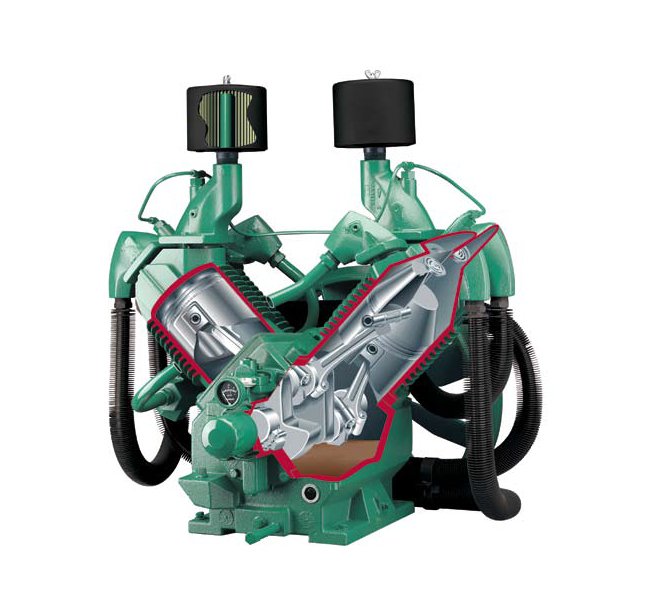

Many options are available to help you develop a Champion® compressor package that exactly matches your specific operating requirements.With many models from which to choose in both single-stage and two-stage, we can match your needs exactly. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL-Series pressure lubricated models.Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.The PL-Series compressor has been designed to operate in extreme duty applications and is also an alternative to an R-Series unit. Because the PL-Series can operate up to 250 psi, in remote locations or in off-level operations, it is a true industrial use compressor. Champion® is so confident in the way it has engineered and built its products, it offers a 5-year warranty on the compressor pump. The PL-Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor. From its extra heavy-duty design to its ease of maintenance, the Champion® PL-Series exemplifies reliability, durability and quality.
Dimensions Height
81 in
Dimensions Length
36 in
Dimensions Width
30 in

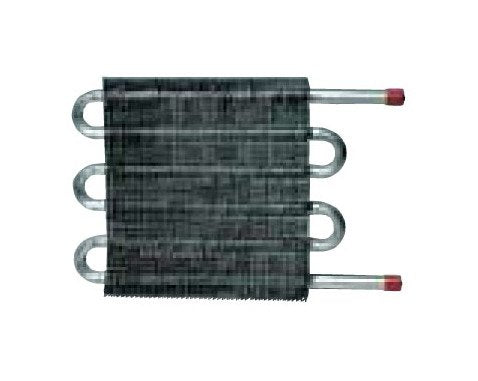

Quality Accessories Air Cooled Or Water Cooled Aftercooler
The factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.
Quality Accessories Automatic Tank Drain
Pneumatic drain operates from a centrifugal unloader.

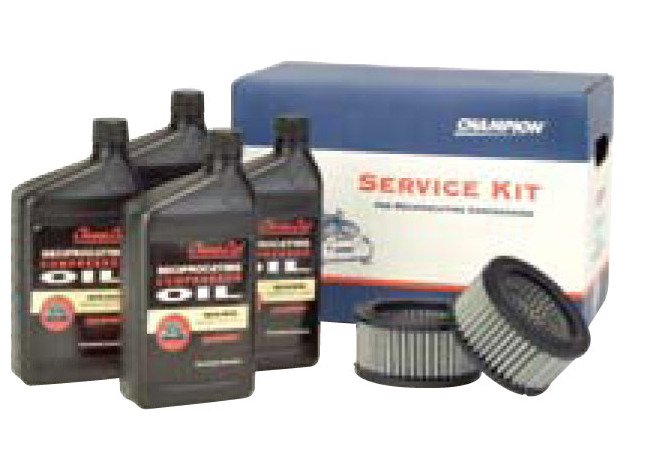

Quality Accessories Champion Compressor Lubricants
ChampLub lubricants are blended specifically for Champion® compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. ChampLub lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic.Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.

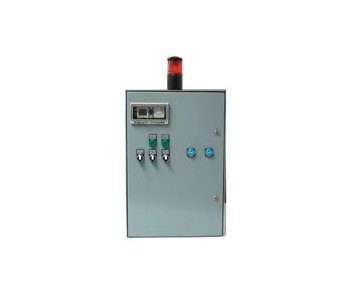

Quality Accessories Dpr Control Panel
The Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.

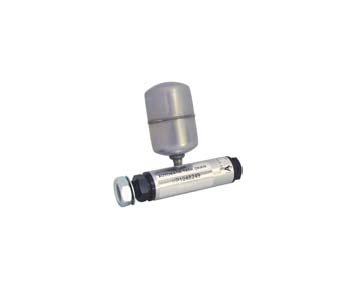

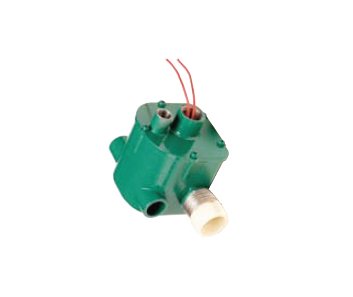

Quality Accessories Low Oil Level Monitor
Low Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.

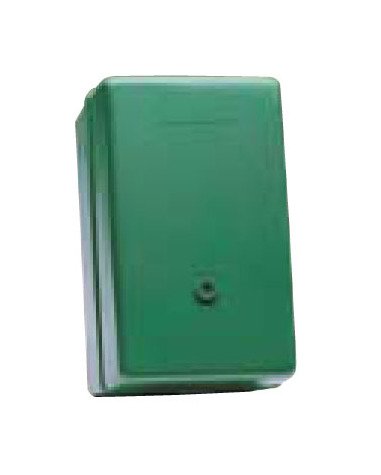

Quality Accessories Magnetic Starter Included As Standard On Mos
For thermal overload protection, a starter is required for units 3 HP and up. May be mounted or unmounted.
Quality Accessories Other Options
Power Monitor that shuts down unit in the event of single phasing, low voltage or phase reversalConstant Speed Control which prevents excessive motor start/stop cycles while saving energyDual Control will allow the compressor to run either in start/stop or constant speed modeNEMA 4 rated parts availableAlternate voltages and TEFC, ODPHE, TEFCHE Electric Motors

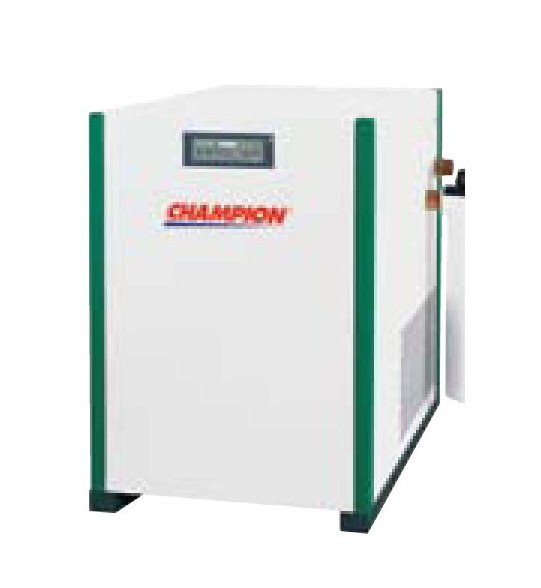

Quality Accessories Refrigerated Air Dryer
Cools compressed air to a 33º-39º dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler. Refrigerated and desiccant dryer types are available.

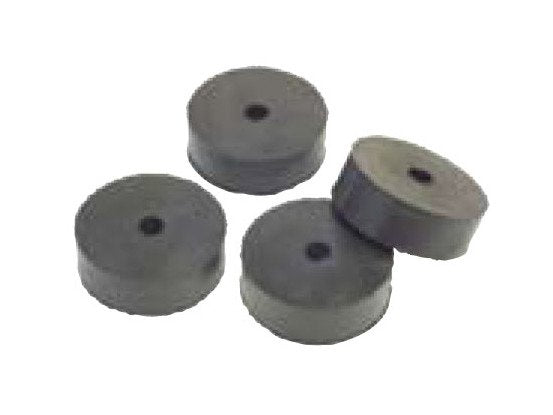

Quality Accessories Vibration Isolators
Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.
Specifications Applications
Automotive | Dry Cleaning | Industrial | Refineries | Service Fleets
Specifications Approximately Shipping Weight
765 lb
Specifications Brand
Champion®
Specifications Delivery At 125 Psi Rating
23.9 ft³/min
Specifications Delivery At 175 Psi Rating
23.1 ft³/min
Specifications Delivery At 250 Psi Rating
18.2 ft³/min
Specifications Displacement At 125 Psi Rating
28.7 ft³/min
Specifications Displacement At 175 Psi Rating
28.7 ft³/min
Specifications Displacement At 250 Psi Rating
25.5 ft³/min
Specifications Motor Power
7-1/2 hp
Specifications Note For 125 175 And 250 Psi Rating
Pressure Lubricated units are capable of 250 PSIG operation; units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2
Specifications Proven Design
Today's Champion® reciprocating compressors are the product of decades of design and development.
Specifications Pump Compressor Model
PL-15A
Specifications Speed At 125 Psi Rating
990 rpm
Specifications Speed At 175 Psi Rating
990 rpm
Specifications Speed At 250 Psi Rating
870 rpm
Specifications Tank Capacity
120 gal
Specifications Unit Type
Vertical Tank Mounted Units - Electric Driven
The Champion Assembled Unit Warranties 5 Year Electric Motor
Electric motor is warranted for 60 months from start-up or 63 months from shipment. Other manufacturer's motors furnished due to customer request or special requirements carry the motor manufacturer's warranty.
The Champion Assembled Unit Warranties Compressor Pump Warranty
Each new Champion® Assembled Unit has a five (5) year warranty on the compressor pump only, against defects in materials or workmanship under normal use and service, from the date of installation or sixty-six (66) months from the date of shipment by Champion® or a Champion® distributor, whichever may occur first.The five-year extended warranty covers parts and labor and is prorated over the five years as follows:Year One - 100% coverageYear Two - 90% coverageYear Three - 80% coverageYear Four - 70% coverageYear Five - 60% coverageHead valves are warranted for Year One only. Champion® makes no warranty on components and/or accessories furnished to Champion® by third parties, such as electric motors, gasoline engines and controls. These are warranted only to the extent of the original manufacturer's warranty to Champion®. Electric motors must be equipped with thermal overload protection to have warranty consideration.The extended five-year warranty will apply to ASME air receivers if they are installed on rubber vibro isolator pads or approved equivalent.
The Champion Assembled Unit Warranties Limited Warranty
Warranty shall not apply to any equipment which has been subjected to misuse, neglect or accident, nor shall it apply to any equipment that has been repaired or altered by any person(s) not authorized by Champion®. Failure caused by lack of proper maintenance is not covered by warranty.In no event shall Champion® be liable for consequential damages or contingent liabilities arising out of failure of any compressor or part to operate properly. When a compressor pump or component is changed or replaced during the warranty period, the new/replaced item(s) is warranted for only the remainder of the original warranty period. Complete warranty details are included in compressor operating manual.
The Champion Assembled Unit Warranties Package Warranty
Champion® warrants each new air compressor package to be free from defects in material and workmanship under normal use and service for a period of one year (12 months) from the date of installation or 15 months from the date of shipment by Champion®.
The Solution To Your Application Bare Compressor Pumps
Provide dependable service for industrial applications, pump replacement or OEM applications. The rugged pump design assures reliability and long maintenance intervals.
The Solution To Your Application Base Mounted Air Compressors
Designed for installations where air tanks are remotely located.
The Solution To Your Application Duplex Air Compressors
For extra air delivery when you need it without wasted space. Plus the flexibility of single operation, alternating between compressors, or duplex operation to meet high air demand.

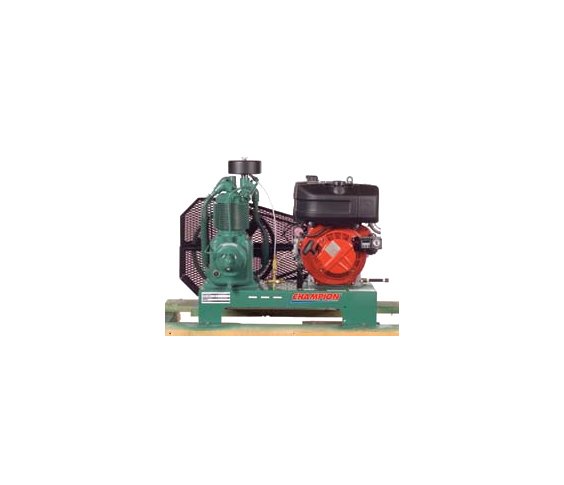

The Solution To Your Application Gasoline Or Diesel Engine Power
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
The Solution To Your Application Receivers
Receivers are ASME approved and include a pressure gauge, pressure relief valve, drain valve and service valve.
