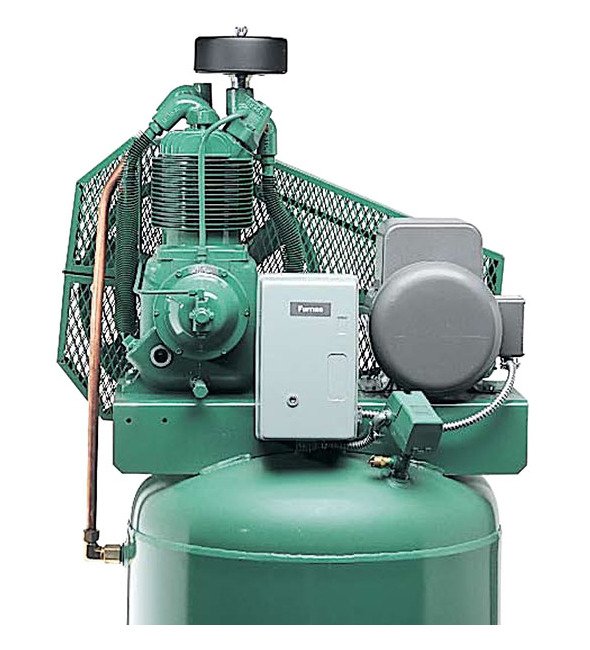

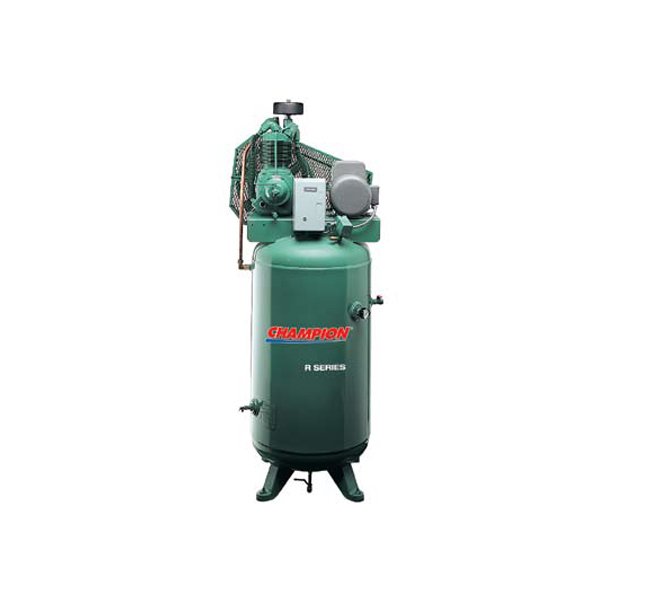

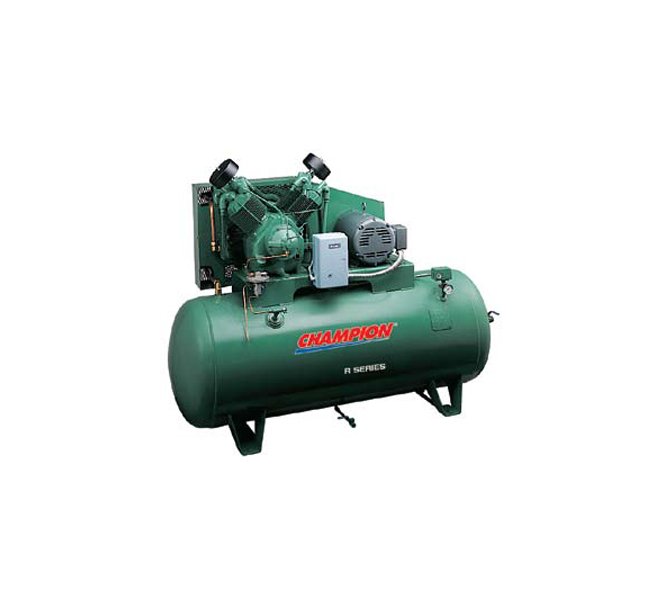

Experience unmatched reliability with the Champion® R & PL Series Oil-Lubricated Reciprocating Air Compressor. Built to exceed expectations, this compressor offers high performance, long life, and tremendous value. With rugged features like slow-speed operation, corrosion-resistant steel valves, and a durable crankcase, it ensures dependable compressed air supply for automotive, industrial, refineries, and service fleet applications. The user-friendly design, wide configuration options, and 5-year compressor pump warranty make it the choice for efficient and trouble-free operation in various settings.
Product Specifications
Additional Information 0
Many options are available to help you develop a Champion® compressor package that exactly matches your specific operating requirements.With many models from which to choose in both single-stage and two-stage, we can match your needs exactly. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL-Series pressure lubricated models.Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.The PL-Series compressor has been designed to operate in extreme duty applications and is also an alternative to an R-Series unit. Because the PL-Series can operate up to 250 psi, in remote locations or in off-level operations, it is a true industrial use compressor. Champion® is so confident in the way it has engineered and built its products, it offers a 5-year warranty on the compressor pump. The PL-Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor. From its extra heavy-duty design to its ease of maintenance, the Champion® PL-Series exemplifies reliability, durability and quality.

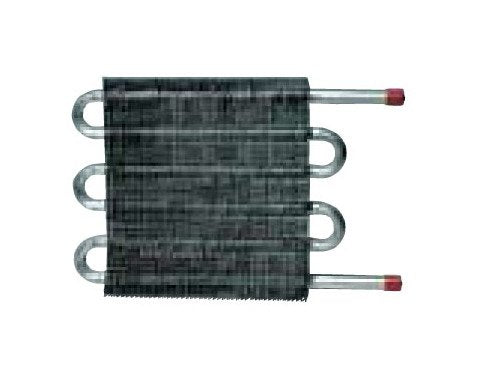

Quality Accessories Air Cooled Or Water Cooled Aftercooler
The factory mounted, heavy-duty, air-cooled aftercooler effectively reduces up to 65% of the moisture from discharged compressed air.

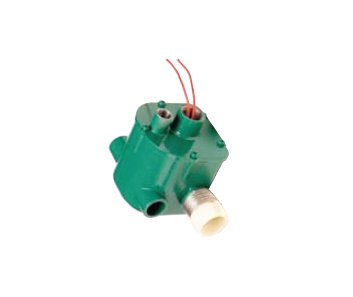

Quality Accessories Automatic Tank Drain
Pneumatic drain operates from a centrifugal unloader.

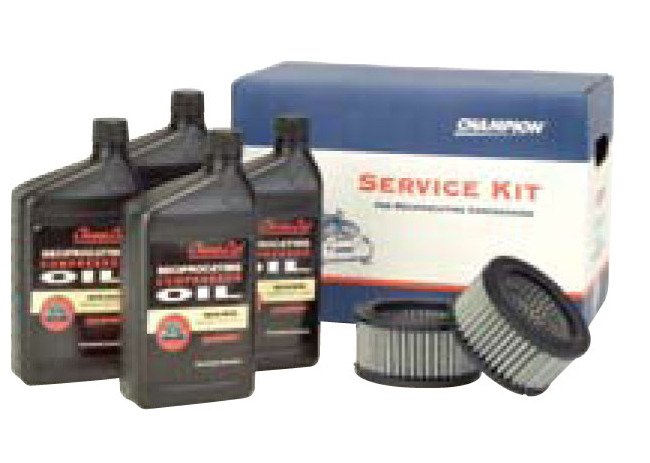

Quality Accessories Champion Compressor Lubricants
ChampLub lubricants are blended specifically for Champion® compressors for use in harsh compressor environments. They are sourced from extremely stable base stocks and enhanced with carefully selected additive packages to provide long life and superior protection. ChampLub lubricants are suitable for a variety of applications and are available as a mineral oil, synthetic or food-grade synthetic.Available in 55-gallon drums, five-gallon pails, one-gallon bottles and one-quart bottles.

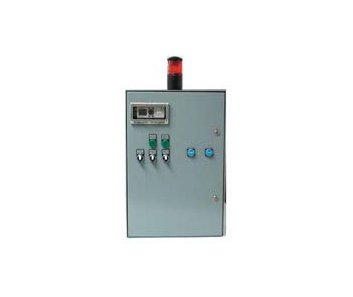

Quality Accessories Dpr Control Panel
The Microprocessed Duplex Relay Panel was created for controlling a duplex air compressor package. The controller includes visual maintenance and shut down alarms.

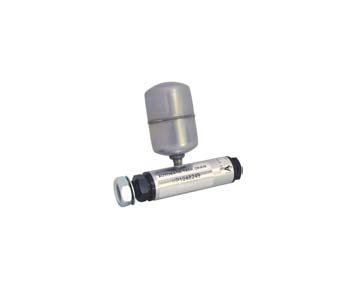

Quality Accessories Low Oil Level Monitor
Low Oil Level Monitor shuts down the unit when oil levels are below an adequate level. Prevents the unit from restarting if oil levels are not at an adequate level.

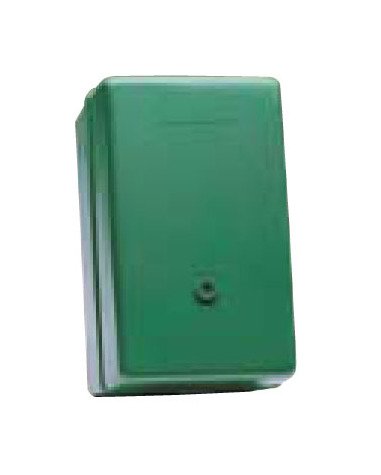

Quality Accessories Magnetic Starter Included As Standard On Mos
For thermal overload protection, a starter is required for units 3 HP and up. May be mounted or unmounted.
Quality Accessories Other Options
Power Monitor that shuts down unit in the event of single phasing, low voltage or phase reversalConstant Speed Control which prevents excessive motor start/stop cycles while saving energyDual Control will allow the compressor to run either in start/stop or constant speed modeNEMA 4 rated parts availableAlternate voltages and TEFC, ODPHE, TEFCHE Electric Motors

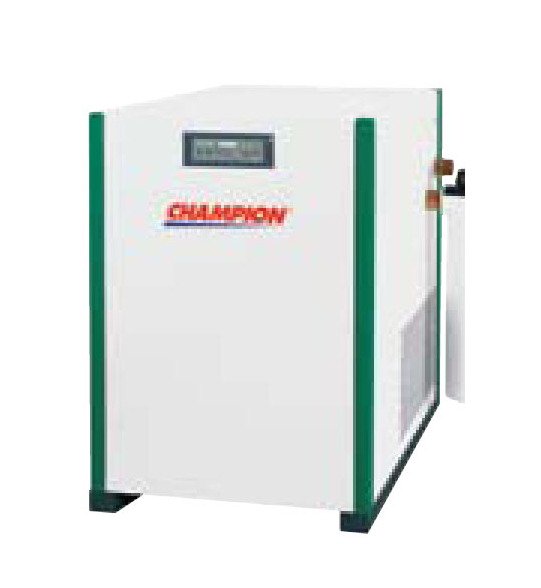

Quality Accessories Refrigerated Air Dryer
Cools compressed air to a 33º-39º dew point, eliminating additional downstream condensation in the air line. Normally, a dryer should be used in conjunction with an aftercooler. Refrigerated and desiccant dryer types are available.

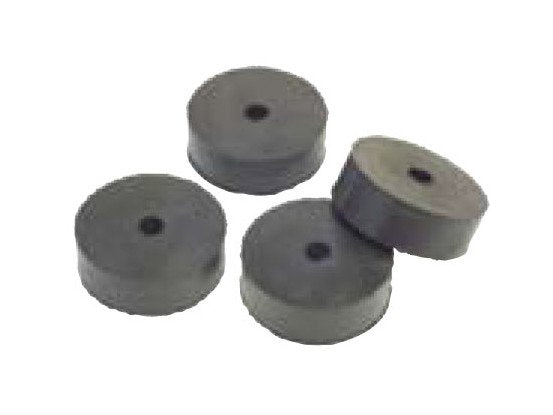

Quality Accessories Vibration Isolators
Isolates the compressor unit from the foundation or floor. Reduces noise and protects the unit from any out-of-level floor situation that could cause vibration and damage.
Specifications Applications
Automotive | Dry Cleaning | Industrial | Refineries | Service Fleets
Specifications Approximately Shipping Weight
125 lb
Specifications Bore Diameter
2-1/2 in | 4-5/8 in
Specifications Brand
Champion®
Specifications Delivery At 125 Psi Rating
19.1 ft³/min
Specifications Delivery At 175 Psi Rating
17.3 ft³/min
Specifications Displacement Per Revolution
0.02916 ft³
Specifications Note For 175 Psi Rating For Engine Driven Units
Pressure lubricated units are capable of 250 PSIG operation. 20 HP and larger packages do not come equipped with a fuel tank.Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC3.
Specifications Note For 250 Psi Rating For Engine Driven Units
Pressure lubricated units are capable of 250 PSIG operation. 20 HP and larger packages do not come equipped with a fuel tank.Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC3.
Specifications Number Of Cylinders
2
Specifications Oil Capacity
2 liq qt
Specifications Proven Design
Today's Champion® reciprocating compressors are the product of decades of design and development.
Specifications Speed At 125 Psi Rating
805 rpm
Specifications Speed At 175 Psi Rating
734 rpm
Specifications Stroke
3 in
Specifications Unit Type
Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

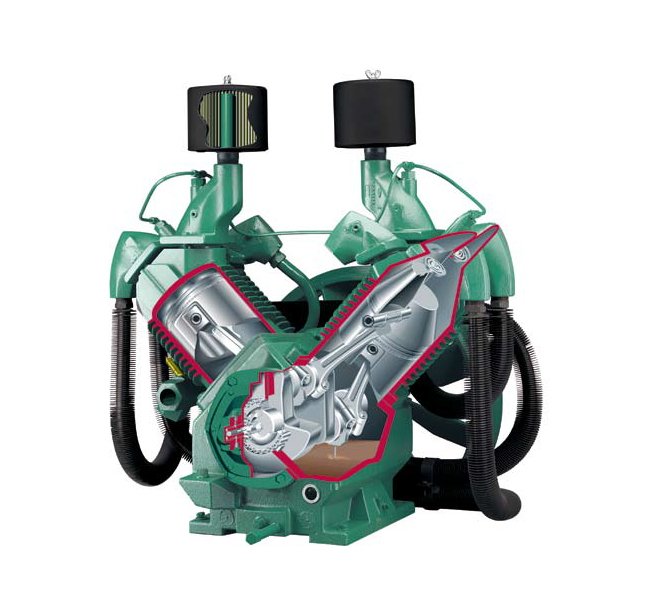

Splash Lubricated R Series Balanced Crankshaft
Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.
Splash Lubricated R Series Balanced Pistons
Aluminum alloy first-stage piston is weight-matched to the cast iron second-stage piston, ensuring proper balance.
Splash Lubricated R Series Integral Cylinderhead
Gasketless design eliminates the possibility of blown head gaskets for trouble-free operation.
Splash Lubricated R Series Intercoolers
Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.
Splash Lubricated R Series Large Capacity Crankcase
Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.
Splash Lubricated R Series Lightweight Connecting Rods
High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.
Splash Lubricated R Series Loadless Starting For R Series
Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Splash Lubricated R Series Multi Finned Cylinders
Cooler operating temperatures result in longer life and consistent performance over time.
Splash Lubricated R Series Optimized Cooling Fanflywheel
Precision balanced flywheel has fan blades for optimum compressor cooling and life.
Splash Lubricated R Series Oversized Main Bearings
Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.
Splash Lubricated R Series Piston Rings
Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.
Splash Lubricated R Series Pressure Relief Valves
Located in interstage and discharge.
Splash Lubricated R Series Reliable High Flow Valves
Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.

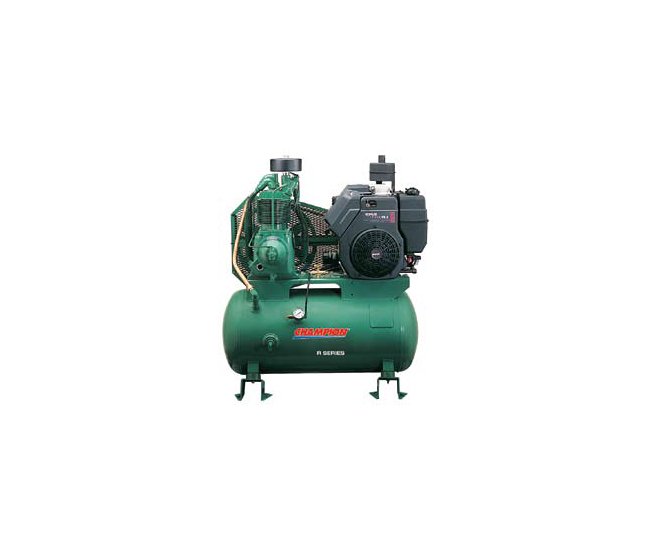

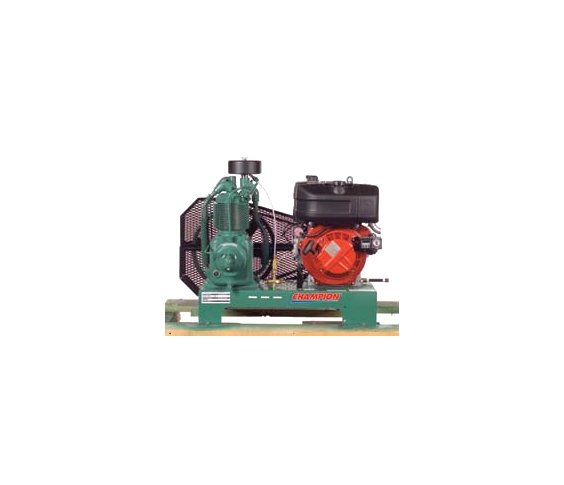

The Solution To Your Application Gasoline Or Diesel Engine Power
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
