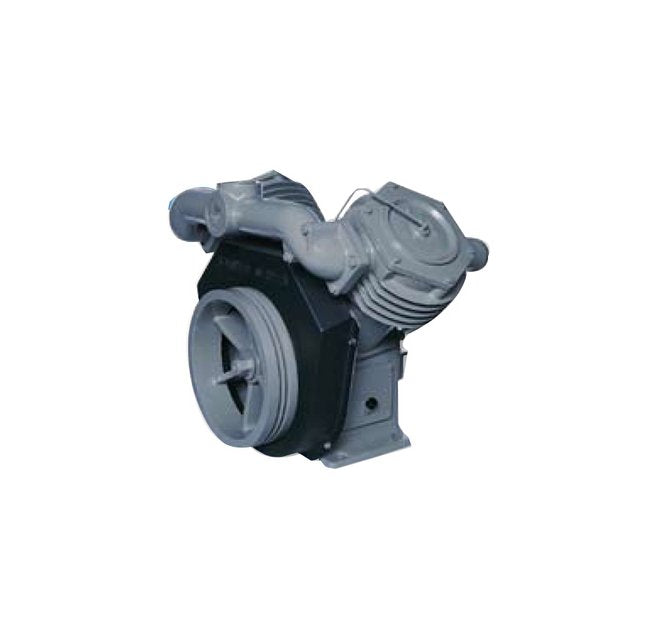

The Champion APL Single Stage Reciprocating Compressor, part of the A Series, offers unparalleled performance and reliability. With a two-cylinder design and pressure lubrication system, it ensures efficient operation for applications like Bulk Material Handling, Engine Starting, and Petroleum Refineries. Meeting ISO 9001:2008, CAGI, and Energy Star standards, this compressor delivers optimal airflow, superior lubrication, and corrosion-free valve components.
Product Specifications
Applications
Compressor designs optimized for premium service in the following applications:Bulk Material Handling.Engine Starting.Well Head Servicing.Petroleum Refineries.Industrial Spraying.
Compressor Specifications Capacity At 20 Psig Pressure And 855 R
113 ft³/min | 3.2 m³/min
Compressor Specifications Capacity At 30 Psig Pressure And 855 R
105 ft³/min | 3.0 m³/min
Compressor Specifications Capacity At 40 Psig Pressure And 855 R
98 ft³/min | 2.8 m³/min
Compressor Specifications Capacity At 50 Psig Pressure And 855 R
90 ft³/min | 2.5 m³/min
Compressor Specifications Capacity At 60 Psig Pressure And 855 R
83 ft³/min | 3.1 m³/min
Compressor Specifications Pressure At 855 Rpm Speed And 15 Hp Po
20 psig | 30 psig | 40 psig | 50 psig | 60 psig | 1.4 bar | 2.1 bar | 2.8 bar | 3.4 bar | 4.1 bar
Compressor Specifications Speed At 15 Hp 112 Kw Power
855 rpm
Dimensions Bore Diameter
7.875 in | 200 mm
Dimensions Discharge Port Design
NPT
Dimensions Height
30 in | 762 mm
Dimensions Inlet Port Design
NPT
Dimensions Length
41 in | 1041 mm
Dimensions Stroke
3 in | 76 mm
Dimensions Suction And Discharge Pipe Size
3 in
Dimensions Weight
750 lb | 340 kg
Dimensions Width
29 in | 737 mm
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Specifications Alternate Model Number
APLGAA | APLGBA | APLHAA | APLHBA
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008
Specifications Motor Power
15 hp | 11.2 kW
Specifications Pressure
28 inHg to 60 psig | 0.95 to 4.1 bar
Standard Features

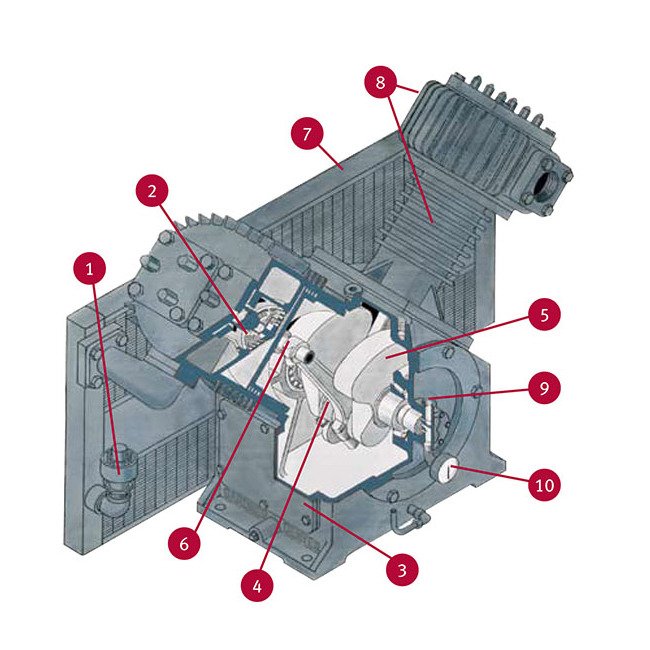

ASME pressure relief valve protects the intercooler and first stage from over pressure.Suction unloading valves (where applicable) provide load less starting and stopping as well as quick response to capacity demands.Removable hand-hole plate allows easy access to the internal running gear.Tri-Metal insert bearings are two-piece for quick and easy replacement.Counterbalanced crankshaft assures smooth operation.Replaceable piston pin bearings are very economical when replacement becomes necessary.Deep-finned cylinders and heads quickly dissipate the heat of compression.Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.Oil pressure gauge assures the operator of lubrication system integrity.The cylinders and crankcase are built of industrial strength cast iron materials.Continuous Operation
Vacuum Specifications Capacity At 780 Rpm Speed And 5 Hp Power
60 ft³/min | 92 ft³/min | 105 ft³/min | 114 ft³/min | 120 ft³/min | 1.7 m³/min | 2.6 m³/min | 3.0 m³/min | 3.2 m³/min | 3.4 m³/min
Vacuum Specifications Speed At 5 Hp 37 Kw Power
780 rpm
Vacuum Specifications Vacuum At 105 Ftmin Capacity And 780 Rpm S
15 inHg | 381 mmHg
Vacuum Specifications Vacuum At 114 Ftmin Capacity And 780 Rpm S
10 inHg | 254 mmHg
Vacuum Specifications Vacuum At 120 Ftmin Capacity And 780 Rpm S
5 inHg | 127 mmHg
Vacuum Specifications Vacuum At 60 Ftmin Capacity And 780 Rpm Sp
25 inHg | 635 mmHg
Vacuum Specifications Vacuum At 780 Rpm Speed
28 inHg | 711 mmHg
Vacuum Specifications Vacuum At 92 Ftmin Capacity And 780 Rpm Sp
20 inHg | 508 mmHg
Valves

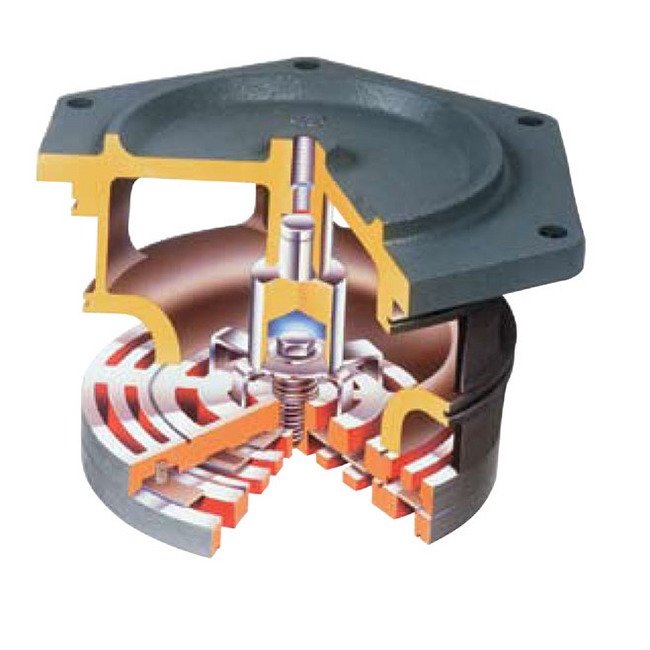

Concentric ring design incorporates both the inlet and outlet valves in one assembly.Designed to give 100% exposure to the air flow for maximum efficiency (i.e. more CFM per HP).Discs and springs are made of AISI 420 stainless steel to give dependable corrosion-free and fatigue-free service life.
