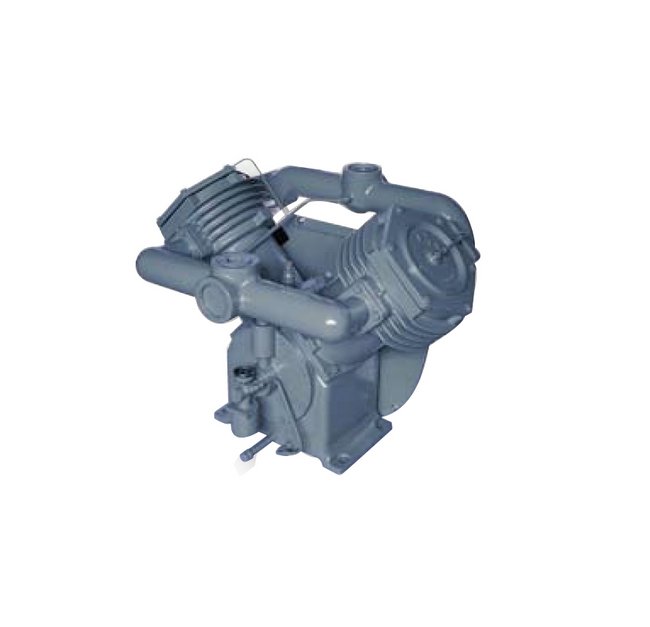

Champion APO Single Stage Reciprocating Compressor
Champion APO Single Stage Reciprocating Compressor
SKU:REC-00a9c8
Powerful Champion APO Single Stage Reciprocating Compressor for industrial applications
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Champion APO Single Stage Reciprocating Compressor
$5,999.99
Quantity: 1
Claim Your Seller Account
Champion APO Single Stage Reciprocating Compressor
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

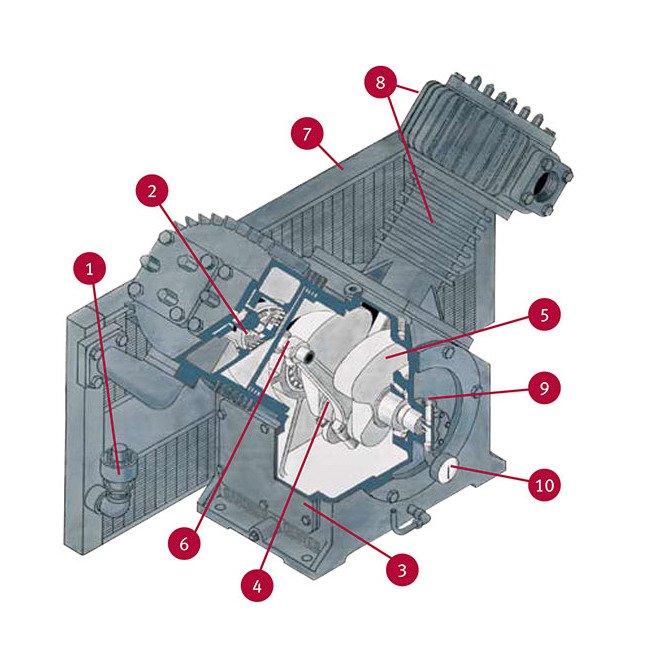

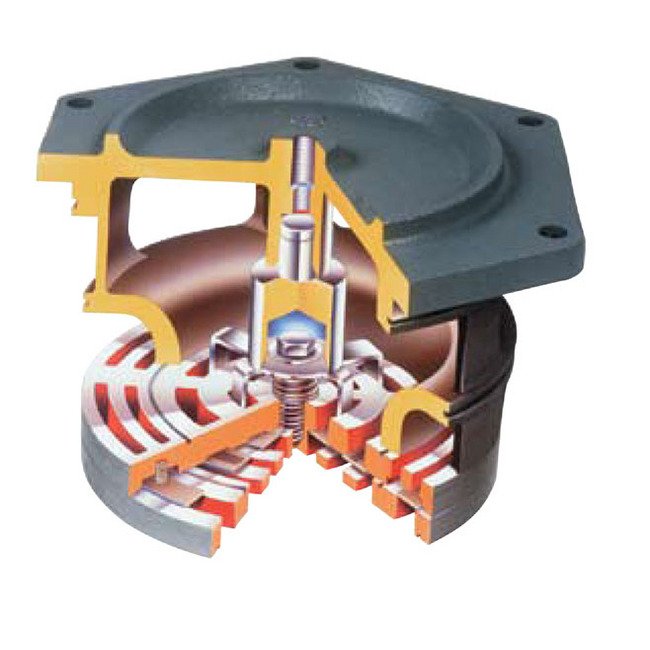

The Champion APO Single Stage Reciprocating Compressor from the A Series is a robust, pressure-lubricated compressor specifically designed for efficient air and natural gas applications. This compressor features a two-cylinder design with a 15 hp motor power, meeting industry standards like CAGI and ISO 9001:2008. With dimensions optimized for industrial use and advanced cooling mechanisms, the APO ensures reliable performance under varying pressures. Its superior lubrication system, concentric ring valves, and standard features like ASME pressure relief ensure smooth operation, making it ideal for bulk material handling, engine starting, well head servicing, and industrial spraying applications.
Product Specifications
Compressor Specifications Capacity At 20 Psig Pressure And 1072
218 ft³/min | 6.1 m³/min
Compressor Specifications Capacity At 20 Psig Pressure And 698 R
145 ft³/min | 4.1 m³/min
Compressor Specifications Capacity At 20 Psig Pressure And 885 R
181 ft³/min | 5.1 m³/min
Compressor Specifications Capacity At 30 Psig Pressure And 1072
205 ft³/min | 5.8 m³/min
Compressor Specifications Capacity At 30 Psig Pressure And 698 R
134 ft³/min | 3.8 m³/min
Compressor Specifications Capacity At 30 Psig Pressure And 885 R
169 ft³/min | 4.8 m³/min
Compressor Specifications Capacity At 40 Psig Pressure And 1072
192 ft³/min | 5.4 m³/min
Compressor Specifications Capacity At 40 Psig Pressure And 698 R
125 ft³/min | 3.5 m³/min
Compressor Specifications Capacity At 40 Psig Pressure And 885 R
158 ft³/min | 4.5 m³/min
Compressor Specifications Capacity At 50 Pressure Psig And 885 R
148 ft³/min | 4.2 m³/min
Compressor Specifications Capacity At 50 Psig Pressure And 1072
180 ft³/min | 5.1 m³/min
Compressor Specifications Capacity At 50 Psig Pressure And 698 R
117 ft³/min | 3.3 m³/min
Compressor Specifications Capacity At 60 Psig Pressure And 1072
168 ft³/min | 4.8 m³/min
Compressor Specifications Capacity At 60 Psig Pressure And 698 R
110 ft³/min | 3.1 m³/min
Compressor Specifications Capacity At 60 Psig Pressure And 885 R
138 ft³/min | 3.9 m³/min
Compressor Specifications Pressure At 1072 Rpm Speed And 30 Hp P
20 psig | 30 psig | 40 psig | 50 psig | 60 psig | 1.4 bar | 2.1 bar | 2.8 bar | 3.4 bar | 4.1 bar
Compressor Specifications Pressure At 698 Rpm Speed And 20 Hp Po
20 psig | 30 psig | 40 psig | 50 psig | 60 psig | 1.4 bar | 2.1 bar | 2.8 bar | 3.4 bar | 4.1 bar
Compressor Specifications Pressure At 885 Rpm Speed And 25 Hp Po
20 psig | 30 psig | 40 psig | 50 psig | 60 psig | 1.4 bar | 2.1 bar | 2.8 bar | 3.4 bar | 4.1 bar
Compressor Specifications Speed At 20 Hp 149 Kw Power
698 rpm
Compressor Specifications Speed At 25 Hp 186 Kw Power
885 rpm
Compressor Specifications Speed At 30 Hp 224 Kw Power
1072 rpm
Dimensions Bore Diameter
7.875 in | 200 mm
Dimensions Discharge Port Design
NPT
Dimensions Height
30 in | 762 mm
Dimensions Inlet Port Design
NPT
Dimensions Length
41 in | 1041 mm
Dimensions Stroke
4.5 in | 114 mm
Dimensions Suction And Discharge Pipe Size
3 in
Dimensions Weight
750 lb | 340 kg
Dimensions Width
29 in | 737 mm
Specifications Alternate Model Number
APOGAA | APOGBA | APOHAA | APOHBA
Specifications Motor Power
15 hp | 11.2 kW
Vacuum Specifications Capacity At 739 Rpm Speed And 75 Hp Power
99 ft³/min | 145 ft³/min | 157 ft³/min | 164 ft³/min | 167 ft³/min | 2.8 m³/min | 4.1 m³/min | 4.4 m³/min | 4.6 m³/min | 4.7 m³/min
Vacuum Specifications Capacity At 937 Rpm Speed And 10 Hp Power
117 ft³/min | 169 ft³/min | 185 ft³/min | 193 ft³/min | 198 ft³/min | 3.5 m³/min | 4.8 m³/min | 5.2 m³/min | 5.5 m³/min | 5.6 m³/min
Vacuum Specifications Speed At 10 Hp 75 Kw Power
937 rpm
Vacuum Specifications Speed At 75 Hp 56 Kw Power
739 rpm
Vacuum Specifications Vacuum At 145 Ftmin Capacity And 739 Rpm S
20 inHg | 508 mmHg
Vacuum Specifications Vacuum At 157 Ftmin Capacity And 739 Rpm S
15 inHg | 381 mmHg
Vacuum Specifications Vacuum At 164 Ftmin Capacity And 739 Rpm S
10 inHg | 254 mmHg
Vacuum Specifications Vacuum At 167 Ftmin Capacity And 739 Rpm S
5 inHg | 127 mmHg
