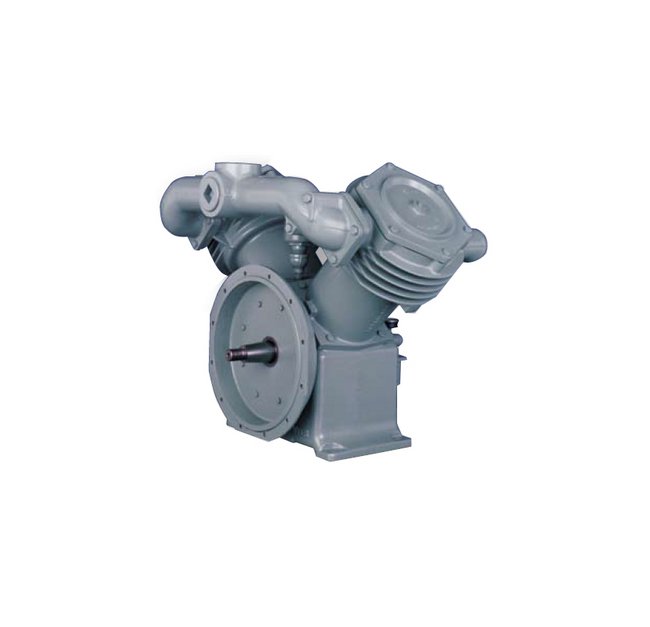

Champion ATLE6 Single Stage Reciprocating Compressor
Champion ATLE6 Single Stage Reciprocating Compressor
SKU:REC-21d6d0
Powerful single stage compressor with 29hp motor, 262 ft³/min displacement, and ASME valve protection. CAGI and ISO 9001:2008 certified.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Champion ATLE6 Single Stage Reciprocating Compressor
$3,999.99
Quantity: 1
Claim Your Seller Account
Champion ATLE6 Single Stage Reciprocating Compressor
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion ATLE6 is a robust single stage compressor designed for industrial applications, featuring a two-cylinder, pressure-lubricated system with superior gear-driven oil pump for complete lubrication. With a motor power of 29 hp, it delivers a piston displacement of 262 ft³/min and a maximum pressure of 30 psig. Equipped with industry-leading features like ASME pressure relief valve, concentric ring valves for maximum efficiency, and AISI 420 stainless steel valve components, the ATLE6 ensures reliable performance and longevity. Certified by CAGI, Energy Star, and ISO 9001:2008, this compressor meets stringent industry standards.
Product Specifications
Additional Information
Wherever there's a demand for a low pressure engine driven compressor, the ATLE6 is the compressor for the job. Because it is direct coupled to the engine, there is no need to worry about belts slipping or wearing out. When connected to the engine, all rotating components are totally enclosed and protected from the environment.Low Pressure BareFactory Fill with ChampLub 500
Dimensions Bore Diameter
7.875 in | 200 mm
Dimensions Discharge Port Design
NPT
Dimensions Height
30 in | 762 mm
Dimensions Inlet Port Design
NPT
Dimensions Length
41 in | 1041 mm
Dimensions Stroke
3 in | 76 mm
Dimensions Suction And Discharge Pipe Size
3 in
Dimensions Weight
750 lb | 340 kg
Dimensions Width
29 in | 737 mm
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Specifications Discharge Air Temperature
400 ºF | 204 ºC
Specifications Duty Cycle
Intermittent
Specifications Flow
180 ft³/min | 5.1 m³/min
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008
Specifications Maximum Pressure
30 psig | 2.07 bar
Specifications Motor Power
29 hp | 22 kW
Specifications Number Of Cylinders
2
Specifications Oil Capacity
9 liq qt | 8.5 L
Specifications Piston Displacement
262 ft³/min | 7.8 m³/min
Specifications Speed At 29 Hp 22 Kw Power
1550 rpm
Standard Features
ASME pressure relief valve protects the intercooler and first stage from over pressure.Suction unloading valves (where applicable) provide load less starting and stopping as well as quick response to capacity demands.Removable hand-hole plate allows easy access to the internal running gear.Tri-Metal insert bearings are two-piece for quick and easy replacement.Counterbalanced crankshaft assures smooth operation.Replaceable piston pin bearings are very economical when replacement becomes necessary.Deep-finned cylinders and heads quickly dissipate the heat of compression.Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.Oil pressure gauge assures the operator of lubrication system integrity.The cylinders and crankcase are built of industrial strength cast iron materials.Continuous Operation
Valves

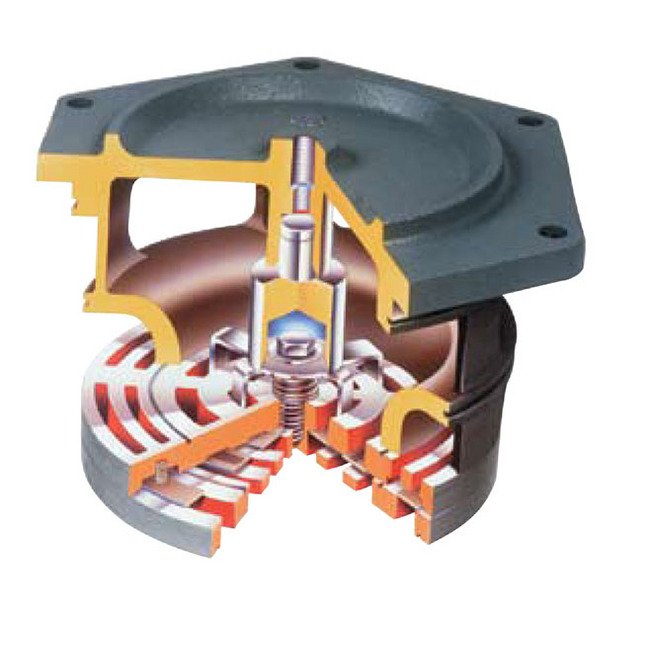

Concentric ring design incorporates both the inlet and outlet valves in one assembly.Designed to give 100% exposure to the air flow for maximum efficiency (i.e. more CFM per HP).Discs and springs are made of AISI 420 stainless steel to give dependable corrosion-free and fatigue-free service life.
