Champion Fiberglass® 1 1/2" IPS Belowground Stop Coupling
Champion Fiberglass® 1 1/2" IPS Belowground Stop Coupling
SKU:BRI-06a848
Upgrade your conduit system with Champion Fiberglass® 1 1/2" IPS Belowground Stop Coupling for UL-compliant, durable performance below ground.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Champion Fiberglass® 1 1/2" IPS Belowground Stop Coupling
$25.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® 1 1/2" IPS Belowground Stop Coupling
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your underground conduit system with the Champion Fiberglass® 1 1/2" IPS Belowground Stop Coupling. Designed for durability with a standard wall thickness, this coupling meets UL standards. Manufactured with epoxy-based resin and continuous E-glass roving, it ensures fire resistance and temperature tolerance from -60ºF to 250ºF. Compatible with fiberglass conduit fittings and accessories, this coupling is perfect for secure below-ground installations.

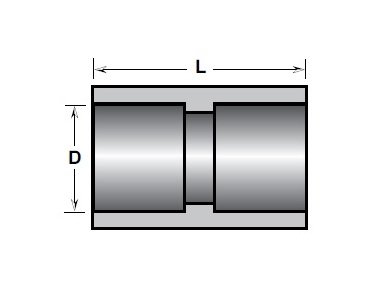

Product Specifications
Dimesional Attributes D
1.91 in | 49 mm
Dimesional Attributes L
6 in | 152 mm
Dimesional Attributes Nominal Size
1 1/2 in
Features
Most Commonly used.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Coupling
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
Iron Pipe Size (IPS) Belowground Stop Coupling
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.05 kg | 0.11 lb
