Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

BRI-539d2e

Durable Champion Fiberglass® 3 Inch IPS Alignment/Expansion Fitting with O-Ring. UL-certified for reliability.

$59.99
$59.99
Sale

Initiate Order

Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

$59.99

Quantity: 1

Claim Your Seller Account

Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Champion Fiberglass® 3 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring is a robust solution for expansion and deflection needs in conduit systems. Crafted with stainless steel clamps for corrosion protection, this fitting ensures durability and performance. Meeting Underwriters Laboratories (UL) standards, it offers reliability and peace of mind. With a nominal size of 3 inches and precise dimensions, this fitting is designed for optimal alignment and expansion, making it a top choice for various installation scenarios.

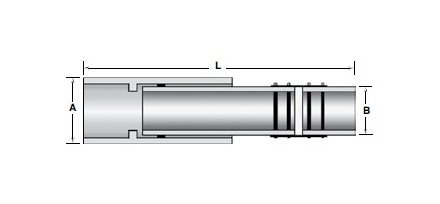

Product Specifications

Dimesional Attributes A
3.66 in | 93 mm
Dimesional Attributes B
3.5 in | 89 mm
Dimesional Attributes L Max
51 in | 1,295 mm
Dimesional Attributes L Min
37 in | 940 mm
Dimesional Attributes Nominal Size
3 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Alignment/Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Alignment/Expansion Fitting with O-Ring
Specifications Wall Thickness
Standard Wall
Specifications Weight
1.91 kg | 4.20 lb
