Champion Fiberglass® 4 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring

Name: Champion Fiberglass® 4 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring
Brand: Colonial Teltek
SKU: BRI-0dd667
Price: 45.99 USD
Availability: OutOfStock

SKU:BRI-0dd667

Durable Champion Fiberglass® 4 Inch Alignment Fitting for secure conduit connections. UL-compliant.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass® 4 Inch IPS Aboveground Alignment/Expansion Fitting with O-Ring is a durable and reliable solution for conduit systems requiring expansion joints. Made with corrosion-resistant stainless steel clamps, this fitting ensures secure connections between conduits. Compliant with Underwriters Laboratories (UL) standards, this fitting offers easy installation and maintenance. With a nominal size of 4 inches and a standard wall thickness, it is suitable for various applications, making it a cost-effective and long-lasting choice for both consumer and institutional buyers.

Product Specifications

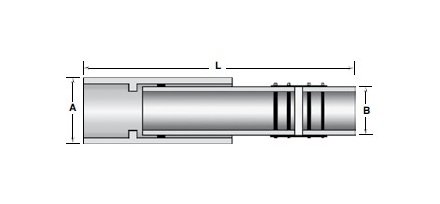

Dimesional Attributes A

4.61 in | 117 mm

Dimesional Attributes B

4.5 in | 114 mm

Dimesional Attributes L Max

51 in | 1,295 mm

Dimesional Attributes L Min

37 in | 940 mm

Dimesional Attributes Nominal Size

4 in

Features

Most Commonly used.

Installation Of Expansion Joints

When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart

Note

All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Alignment/Expansion

Specifications Type

Iron Pipe Size (IPS) Aboveground Alignment/Expansion Fitting with O-Ring

Specifications Wall Thickness

Standard Wall

Specifications Weight

2.29 kg | 5.04 lb
