Champion Fiberglass® 4" x 10ft Heavy Wall Iron Pipe Size Aboveground Conduit

Name: Champion Fiberglass® 4" x 10ft Heavy Wall Iron Pipe Size Aboveground Conduit
Brand: Colonial Teltek
SKU: BRI-6c6d81
Price: 45.99 USD
Availability: OutOfStock

SKU:BRI-6c6d81

High-strength 4" x 10ft Aboveground Conduit for superior protection. Concrete-tight joint with easy installation. Ideal for various applications.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior protection with the Champion Fiberglass® 4" x 10ft Heavy Wall Iron Pipe Size Aboveground Conduit. This conduit features an interference joint system with a bell and spigot design, ensuring easy installation and a high pull-out strength of 1,000 lbs. The concrete-tight joint enhances safety and durability for a range of applications, making it a reliable choice for increased protection in 4" - 8" installations. Manufactured with epoxy-based resin and continuous E-glass roving, this conduit meets rigorous industry standards ensuring high quality and performance.

Product Specifications

Application

Used for increased protection in 4" - 8"

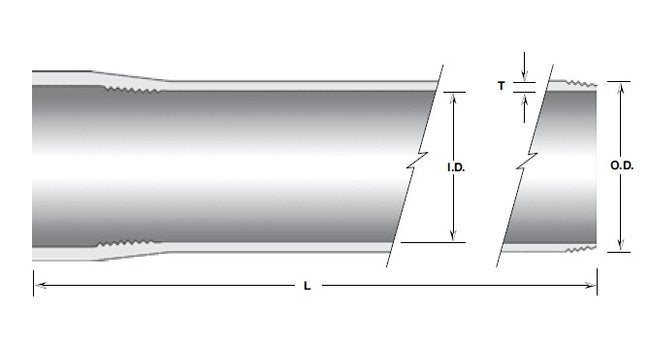

Dimesional Attributes Length L

10 ft | 3 m

Dimesional Attributes Nominal Size

4 in

Features

Most Commonly used.

General Information

Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.

Note

When ordering 10 ft (3.05 m) lengths, half of the order will be supplied with interference joint and half with straight socket joint.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications End Type

Bell End

Specifications Type

Iron Pipe Size (IPS) Aboveground Straight Conduit with Interference Joint

Specifications Wall Thickness

Heavy Wall
