Champion Fiberglass® 5 Inch IPS Belowground Alignment/Expansion Fitting with O-Ring

Name: Champion Fiberglass® 5 Inch IPS Belowground Alignment/Expansion Fitting with O-Ring
Brand: Colonial Teltek
SKU: BRI-600729
Price: 79.99 USD
Availability: OutOfStock

SKU:BRI-600729

Durable Champion Fiberglass® 5in IPS Belowground Alignment/Expansion Fitting for reliable underground installations.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Champion Fiberglass® 5 Inch IPS Belowground Alignment/Expansion Fitting with O-Ring is designed for optimal protection and alignment in underground installations. Featuring stainless steel clamps for corrosion resistance, this fitting ensures durability and performance. With medium wall thickness and UL certification, it meets industry standards for reliability and safety. Install with ease using the provided guidelines for proper expansion joint placement, enhancing duct longevity and efficiency.

Product Specifications

Application

Used for more protection in 5" & 6"

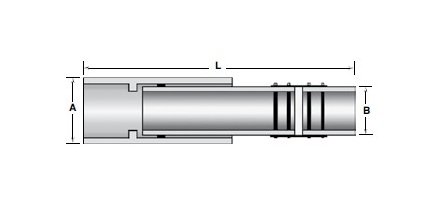

Dimesional Attributes A

5.79 in | 147 mm

Dimesional Attributes B

5.6 in | 142 mm

Dimesional Attributes L Max

51 in | 1,295 mm

Dimesional Attributes L Min

37 in | 940 mm

Dimesional Attributes Nominal Size

5 in

Installation Of Expansion Joints

When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart

Note

All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.

Specifications Brand

Champion Fiberglass®, Inc.

Specifications Color

Black

Specifications Industry Standardscertifications

Underwriters Laboratories (UL)

Specifications Style

Alignment/Expansion

Specifications Type

Iron Pipe Size (IPS) Belowground Alignment/Expansion Fitting with O-Ring

Specifications Wall Thickness

Medium Wall

Specifications Weight

3.81 kg | 8.40 lb
