Champion Fiberglass® 5 Inch IPS Heavy Wall Single Expansion Joint with O-Ring
Champion Fiberglass® 5 Inch IPS Heavy Wall Single Expansion Joint with O-Ring
SKU:BRI-b46897
Enhance conduit protection with the Champion Fiberglass® 5 Inch IPS Heavy Wall Single Expansion Joint.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Champion Fiberglass® 5 Inch IPS Heavy Wall Single Expansion Joint with O-Ring
$89.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® 5 Inch IPS Heavy Wall Single Expansion Joint with O-Ring
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Champion Fiberglass® 5 Inch IPS Heavy Wall Single Expansion Joint with O-Ring is a top-of-the-line solution designed for enhanced protection in bridge conduit systems. This durable expansion joint features a heavy wall iron pipe size construction, ensuring reliability and longevity. With precise dimensions and a black finish, it seamlessly integrates into various applications from 4" to 8". The inclusion of an O-Ring provides a secure seal, making it a go-to choice for installations requiring advanced protection and longevity.
Product Specifications
Application
Used for increased protection in 4" - 8"

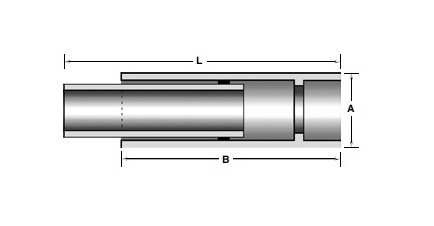

Dimesional Attributes A
5.85 in | 149 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
5 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Style
Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Heavy Wall
Specifications Weight
1.36 kg | 3.00 lb
