Champion Fiberglass® 5" Medium Wall ID Belowground Stop Coupling with Gasket Joint
Champion Fiberglass® 5" Medium Wall ID Belowground Stop Coupling with Gasket Joint
SKU:BRI-67eb04
Champion Fiberglass 5" Stop Coupling with Gasket Joint: Watertight, durable, and UL-certified for extreme conditions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Champion Fiberglass 5 Inch Medium Wall ID Belowground Stop Coupling with Gasket Joint provides unparalleled protection and durability for conduit systems. This fiberglass stop coupling features a triple seal gasket joint system with a 2,000 lbs pull-out strength, ensuring a watertight seal. Manufactured to meet strict industry standards, including Underwriters Laboratories (UL) certifications, this coupling is designed for belowground use in extreme temperature conditions. The epoxy-based resin system, continuous E-glass roving, and integral bell and spigot construction make it a reliable choice for demanding applications.
Product Specifications
Application
Used for more protection in 5" & 6"

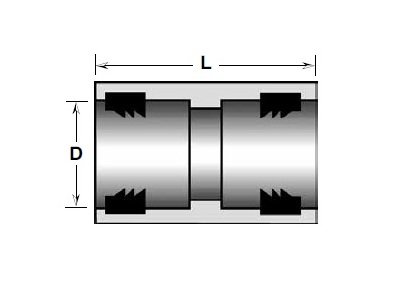

Dimesional Attributes D
5.20 in | 132 mm
Dimesional Attributes L
8 in | 203 mm
Dimesional Attributes Nominal Size
5 in
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Coupling
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
ID Belowground (Tubular) Stop Coupling with Gasket Joint
Specifications Wall Thickness
Medium Wall
Specifications Weight
0.77 kg | 1.70 lb
