Champion Fiberglass® LB Conduit Body, 1 1/2-Inch Standard Wall Type
Champion Fiberglass® LB Conduit Body, 1 1/2-Inch Standard Wall Type
SKU:BRI-680ce1
Enhance your conduit system with the Champion Fiberglass® 1 1/2-Inch LB Conduit Body: flame retardant, high strength, and watertight seal.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Champion Fiberglass® LB Conduit Body, 1 1/2-Inch Standard Wall Type
$24.99
Quantity: 1
Claim Your Seller Account
Champion Fiberglass® LB Conduit Body, 1 1/2-Inch Standard Wall Type
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conduit system with the Champion Fiberglass® 1 1/2-Inch LB Conduit Body. Crafted from high glass content vinyl ester resin, this conduit body is flame retardant, halogen-free, and compliant with UL 2515 and CSA C22.2 No. 2515 standards. Featuring a stainless steel hardware, high performance rubber gasket, and a 32 in³ volume capacity, this LB conduit body ensures a watertight seal and ultimate strength for your aboveground conduit needs.

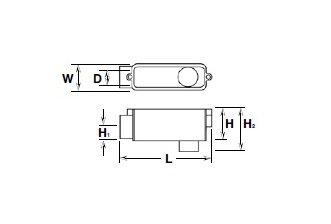

Product Specifications
Dimesional Attributes D
1.910 in | 48 mm
Dimesional Attributes H
2.875 in | 73 mm
Dimesional Attributes H1
1.188 in | 30 mm
Dimesional Attributes H2
4.875 in | 124 mm
Dimesional Attributes L
9.000 in | 229 mm
Dimesional Attributes Nominal Size
1 1/2 in
Dimesional Attributes W
2.540 in | 64 mm
Features
Most Commonly used.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Industry Standardscertifications
Underwriters Laboratories (UL) 2515, Canadian Standards Association (CSA) C22.2 No. 2515
Specifications Material
Vinyl Ester Resin with High Glass Content
Specifications Style
LB
Specifications Type
Iron Pipe Size (IPS) Aboveground Conduit Body
Specifications Volume Capacity
32.00 in³ | 524 cm³
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.50 kg | 1.10 lb
